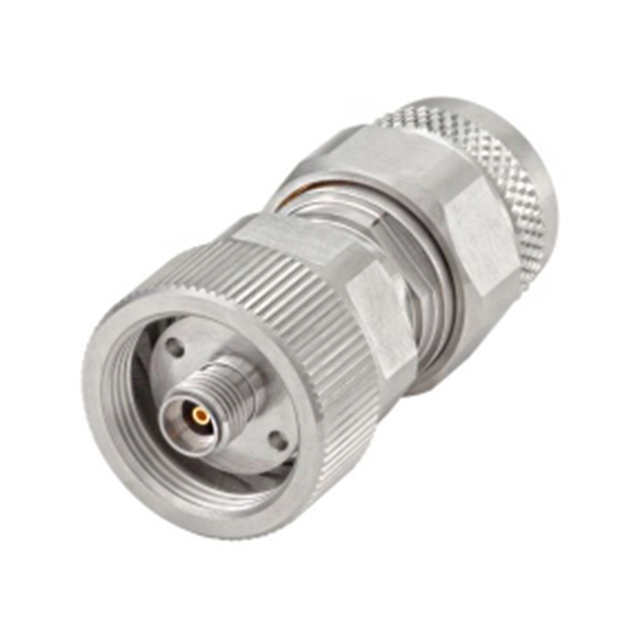

03KR105-S0AS3

Active

Rosenberger

COAX ADAPT RPC-3.50 TO RPC-N

Search across all available documentation for this part.

Active

Rosenberger

COAX ADAPT RPC-3.50 TO RPC-N

Technical Specifications

Parameters and characteristics for this part

Part	Mating Cycles	Adapter Series	Style	Center Gender	Frequency - Max [Max]	Center Contact Material	Body Material	Conversion Type	Impedance	Dielectric Material	Mounting Type	Insertion Loss	Convert From (Adapter End)	Convert To (Adapter End)	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Adapter Type
Rosenberger 03KR105-K0AS3	500	RPC-3.50 to RPC-N	Straight	Female to Female	18 GHz	Beryllium Copper	Stainless Steel	Between Series	50 Ohms	Polyphenylene Ether (PPE)	Free Hanging (In-Line)	0.21 dB	3.5mm Jack Female Socket	Female Socket N Jack	Gold	85 °C	-40 °C	Jack to Jack
Rosenberger 03KR105-S0AS3	500	RPC-3.50 to RPC-N	Straight		18 GHz	Beryllium Copper	Stainless Steel	Between Series	50 Ohms	Polyphenylene Ether (PPE)	Free Hanging (In-Line)	0.21 dB	3.5mm Jack Female Socket	Male Pin N Plug	Gold	85 °C	-40 °C	Plug to Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 883.02

General part information

Adapter Coaxial Connector 3.5mm Jack, Female Socket To N Plug, Male Pin 50 Ohms
