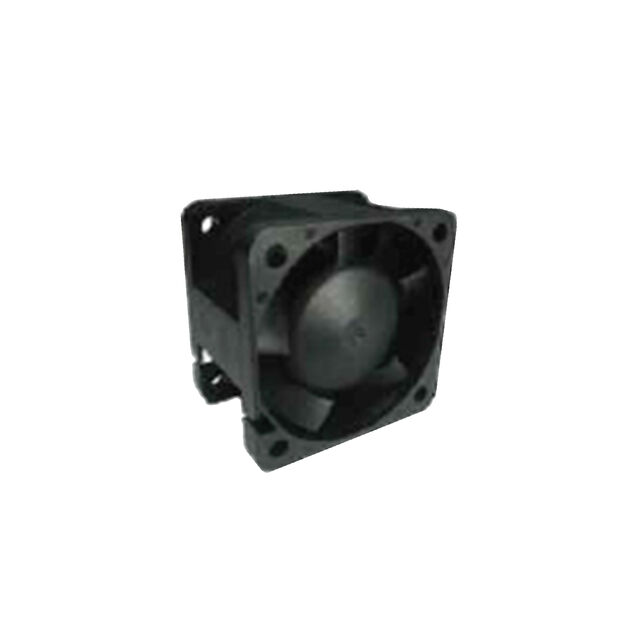

XYW04028012BSS-E-12
ActiveYS TECH USA
FAN AXIAL 40X28MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XYW04028012BSS-E-12
ActiveYS TECH USA
FAN AXIAL 40X28MM 12VDC WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XYW04028012BSS-E-12 |
|---|---|
| Air Flow | 33.7 CFM |
| Air Flow | 0.943 m³/min |
| Bearing Type | Ball |
| Current Rating (Amps) | 1.8 A |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 65000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Noise | 61 dB(A) |
| Power (Watts) | 21.6 W |
| RPM | 23500 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [z] | 40 mm |
| Static Pressure | 2.5 in H2O |
| Static Pressure | 622.7 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.2 VDC |
| Voltage Range [Min] | 7 V |
| Width [y] | 28 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 23.55 | |
| 20 | $ 19.60 | |||
| 200 | $ 17.45 | |||
| 500 | $ 13.10 | |||
| 1000 | $ 12.10 | |||
| 5000 | $ 11.20 | |||
Description
General part information
XYW04028012 Series
Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 33.7 CFM (0.943m³/min) 2 Wire Leads
