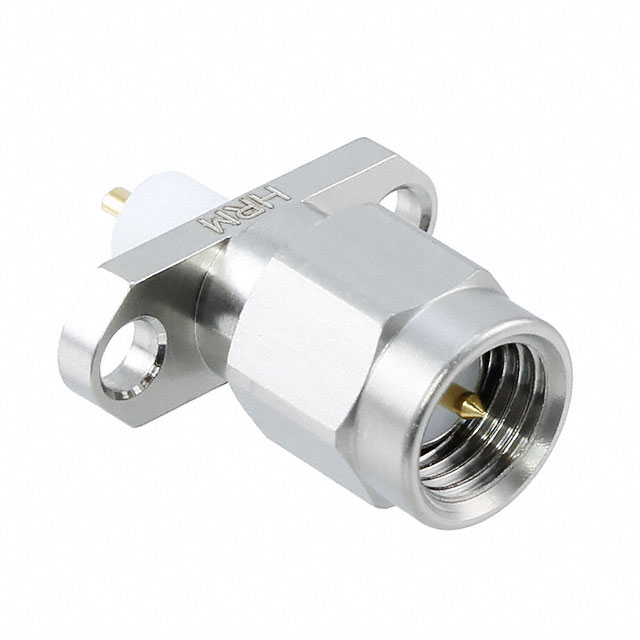

HRM-403S(40)

Obsolete

Hirose Electric USA, Inc.

RF SMA CONNECTOR, 1 CONTACT(S), LOCKING, PLUG/RECEPTACLE

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

RF SMA CONNECTOR, 1 CONTACT(S), LOCKING, PLUG/RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	HRM-403S(40)

Body Material	Stainless Steel
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	12.4 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.1 dB
Mating Cycles	1000
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder

Part	Center Contact Plating	Body Material	Contact Termination	Impedance	Mounting Feature	Connector Type	Insertion Loss	Number of Ports	Mating Cycles	Frequency - Max [Max]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Center Contact Material	Housing Color	Connector Style	Shield Termination
Hirose Electric USA, Inc. HRM-403S(40)	Gold	Stainless Steel	Solder	50 Ohms	Flange	Male Pin Plug	0.1 dB	1	1000	12.4 GHz	Extended Insulation	-55 °C	125 °C	Polytetrafluoroethylene (PTFE)	Brass	Silver	SMA	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMA Connector Plug, Male Pin 50 Ohms Panel Mount Solder
