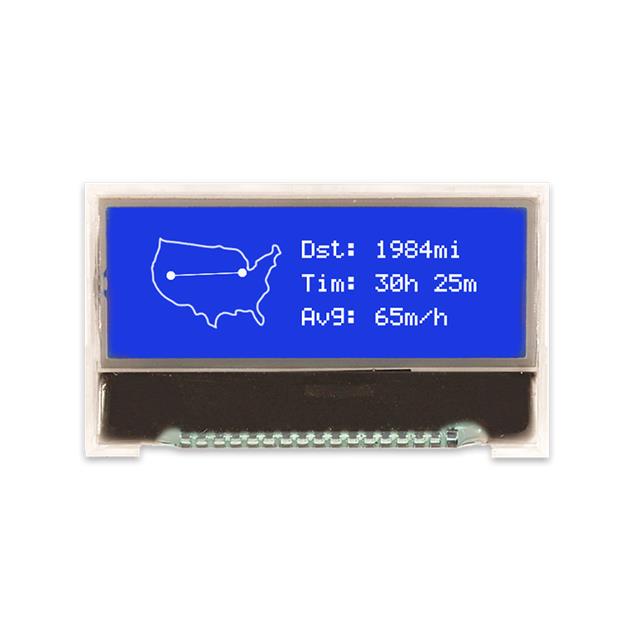

NHD-C12832A1Z-NSW-BBW-3V3

Active

Newhaven Display Intl

LCD COG GRAPHIC 128X32

Search across all available documentation for this part.

Active

Newhaven Display Intl

LCD COG GRAPHIC 128X32

Technical Specifications

Parameters and characteristics for this part

Part	Viewing Area [x]	Viewing Area [y]	Display Mode	Dot Pixels [y]	Dot Pixels [x]	Display Type	Dot Size [y]	Dot Size [z]	Dot Pitch [y]	Dot Pitch [z]	Graphics Color	Graphics Color	Backlight	Controller Type	Background Color	Dot Pitch [x]	Interface	Background Color
Newhaven Display Intl NHD-C-12832AZ-RN-GBS	31.4 mm	19.4 mm	Transflective	32	128	STN - Super-Twisted Nematic	0.2 mm	0.28 mm	0.23 mm	0.31 mm
Newhaven Display Intl NHD-C12832A1Z-FSR-FBW-3V3			Transflective	32	128	FSTN - Film Super-Twisted Nematic	0.23 mm	0.23 mm	0.25 mm		Red	Black	LED - Red	ST7565R	Red	0.25 mm	SPI
Newhaven Display Intl NHD-C12832A1Z-FSB-FBW-3V3			Transflective	32	128	FSTN - Film Super-Twisted Nematic	0.23 mm	0.23 mm	0.25 mm			Black	LED - Blue	ST7565R	Blue (Black - Inverted)	0.25 mm	SPI
Newhaven Display Intl NHD-C12832A1Z-FS(RGB)-FBW-3V			Transflective	32	128	FSTN - Film Super-Twisted Nematic	0.23 mm	0.23 mm	0.25 mm			Black	Blue Green LED Red	ST7565R	Blue Green Red	0.25 mm	SPI
Newhaven Display Intl NHD-C12832A1Z-NSW-BBW-3V3			Transmissive	32	128	STN - Super-Twisted Nematic	0.23 mm	0.23 mm	0.25 mm			Blue White	LED - White	ST7565R	Blue	0.25 mm	SPI	White
Newhaven Display Intl NHD-C12832A1Z-FSW-FBW-3V3			Transflective	32	128	FSTN - Film Super-Twisted Nematic	0.23 mm	0.23 mm	0.25 mm			Black	LED - White	ST7565R	White	0.25 mm	SPI	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Graphic LCD Display Module Transmissive White (Blue - Inverted) STN - Super-Twisted Nematic SPI 128 x 32
