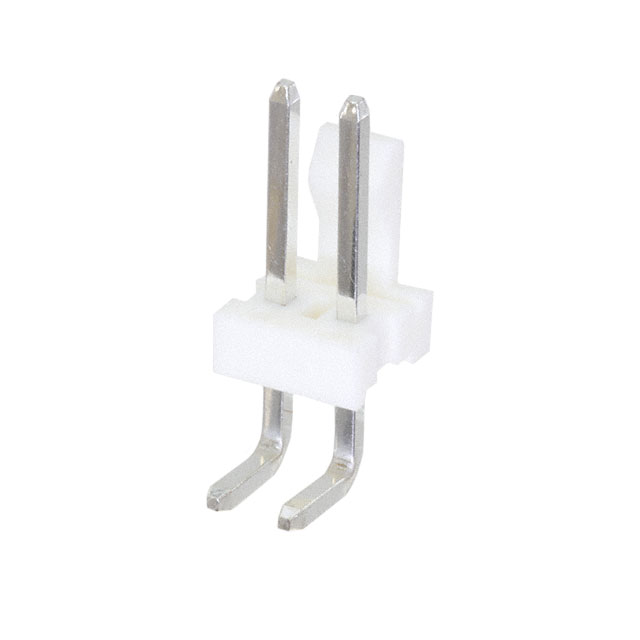

LHD-02-TRA

Active

Adam Tech

CONN HEADER VERT 2POS 3.96MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER VERT 2POS 3.96MM

Technical Specifications

Parameters and characteristics for this part

Specification	LHD-02-TRA

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	11.43 mm
Contact Length - Mating	0.45 in
Contact Length - Post	0.156 in
Contact Length - Post	3.96 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5 A
Fastening Type	Friction Lock
Insulation Color	Natural
Insulation Height	0.13 in
Insulation Height	3.3 mm
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Number of Positions Loaded	Connector Type	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Contact Shape	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Mounting Type	Number of Rows	Current Rating (Amps)	Fastening Type	Insulation Material	Shrouding	Contact Material	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Contact Type	Style	Number of Positions	Insulation Color	Termination	Contact Length - Mating	Contact Length - Mating
Adam Tech LHD-02-TS	All	Header	11.4 mm	0.449 in	Square	0.156 in	3.96 mm	0.125 in	3.18 mm	3.6 mm	0.142 in	Through Hole	1	7 A	Friction Lock	Polyamide (PA66) Nylon 6/6	Shrouded - 1 Wall	Brass	Tin	85 °C	-40 °C	UL94 V-2	Male Pin	Board to Cable/Wire	2	White	Solder
Adam Tech LHD-02-TRA	All	Header			Square	0.156 in	3.96 mm	0.13 in	3.3 mm	3.96 mm	0.156 in	Through Hole	1	5 A	Friction Lock	Polyamide (PA66) Nylon 6/6 Glass Filled	Shrouded - 1 Wall	Brass	Tin	85 °C	-25 °C	UL94 V-0	Male Pin	Board to Cable/Wire	2	Natural	Solder	11.43 mm	0.45 in
