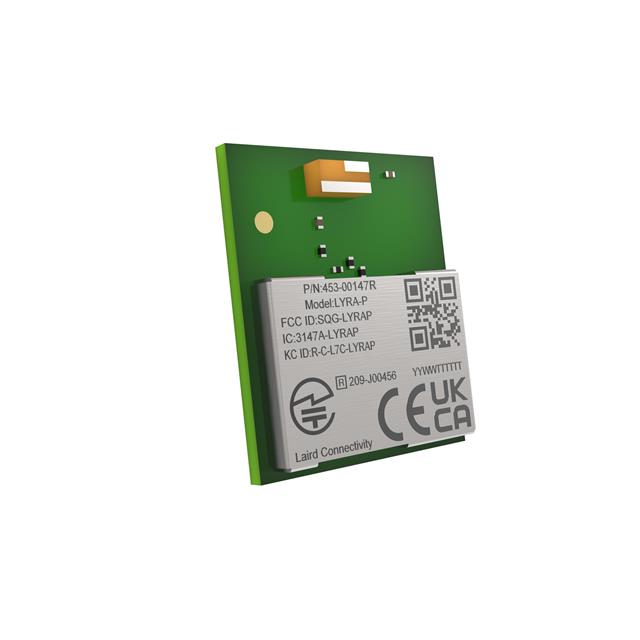

453-00147R
ActiveEzurio LLC
RF TXRX MOD BLUETOOTH CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
453-00147R
ActiveEzurio LLC
RF TXRX MOD BLUETOOTH CHIP SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 453-00147R |
|---|---|
| Antenna Type | Integrated, Chip |
| Current - Receiving | 4.3 mA |
| Current - Transmitting | 4.8 mA |
| Frequency | 2.4 GHz |
| Memory Size [custom] | 512 kB |
| Memory Size [custom] | 32 kB |
| Modulation | GFSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 31-SMD Module |
| Power - Output | 8 dBm |
| Protocol | Zigbee®, Bluetooth v5.3 |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | UART, I2C, SPI |
| Utilized IC / Part | EFR32BG22 |
| Voltage - Supply [Max] | 3.8 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.28 | |
| 50 | $ 5.12 | |||
| 100 | $ 4.95 | |||
| Digi-Reel® | 1 | $ 5.28 | ||
| 50 | $ 5.12 | |||
| 100 | $ 4.95 | |||
| Tape & Reel (TR) | 1000 | $ 4.95 | ||
Description
General part information
453-00147 Series
Bluetooth Bluetooth v5.3, Zigbee® Transceiver Module 2.4GHz Integrated, Chip Surface Mount
Documents
Technical documentation and resources
No documents available
