6048420

Active

SICK, Inc.

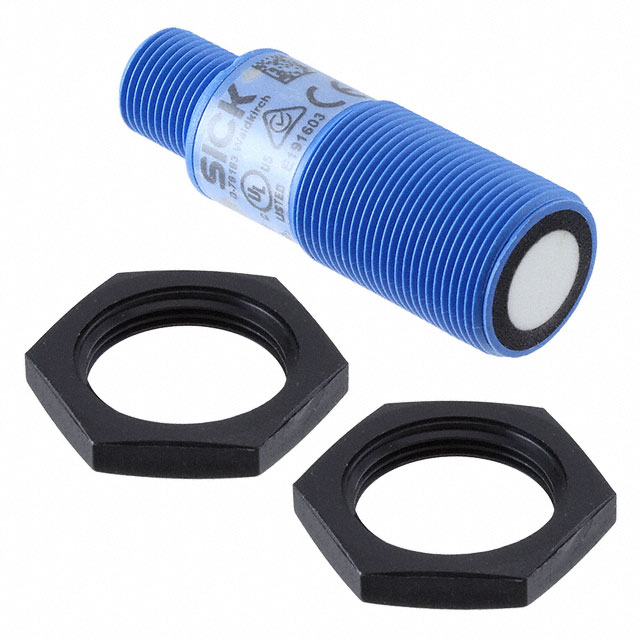

SENSOR PROX ULTRA 120-1000MM CYL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6048420

Active

SICK, Inc.

SENSOR PROX ULTRA 120-1000MM CYL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6048420

Indicator [custom]	LED
Ingress Protection	IP67
Material - Body	Polybutylene Terephthalate (PBT)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Type	PNP
Package / Case	Cylinder, Threaded - M18
Response Frequency	10 Hz
Sensing Distance [Max]	39.37 in
Sensing Distance [Max]	1000 mm
Sensing Distance [Min]	4.724 "
Sensing Distance [Min]	120 mm
Sensor Type	Ultrasonic
Termination Style	Connector
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

UM18 Series

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Material - Body	Termination Style	Output Type	Response Frequency	Package / Case	Indicator [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Max]	Sensor Type
SICK, Inc. 6048422	30 VDC	10 VDC	Polybutylene Terephthalate (PBT)	Connector	NPN	10 Hz	Cylinder Threaded - M18	LED	70 °C	-25 °C	IP67	4.724 "	120 mm	39.37 in	1000 mm	Ultrasonic
SICK, Inc. UM18-218127112	30 VDC	10 VDC 15 VDC	Nickel-Plated Brass	Connector	Analog Voltage		Cylinder Threaded - M18	LED	70 °C	-25 °C	IP67	4.724 "	120 mm	39.37 in	1000 mm	Ultrasonic
SICK, Inc. 6048393	30 VDC	10 VDC	Nickel-Plated Brass	Connector	Analog Current		Cylinder Threaded - M18	LED	70 °C	-25 °C	IP67	1.181 "	30 mm	9.843 "	250 mm	Ultrasonic
SICK, Inc. 6048387	30 VDC	10 VDC	Nickel-Plated Brass	Connector	Analog Current		Cylinder Threaded - M18	LED	70 °C	-25 °C	IP67	0.787 "	20 mm	5.906 "	15 cm	Ultrasonic
SICK, Inc. 6048404	30 VDC	10 VDC	Nickel-Plated Brass	Connector	Analog Current		Cylinder Threaded - M18	LED	70 °C	-25 °C	IP67	4.724 "	120 mm	39.37 in	1000 mm	Ultrasonic
SICK, Inc. 6048408	30 VDC	10 VDC	Polybutylene Terephthalate (PBT)	Connector	PNP	25 Hz	Cylinder Threaded - M18	LED	70 °C	-25 °C	IP67	0.787 "	20 mm	5.906 "	15 cm	Ultrasonic
SICK, Inc. UM18-211165101	30 VDC	10 VDC	Polybutylene Terephthalate (PBT)	Connector	NPN	25 Hz	Cylinder Threaded - M18	LED	70 °C	-25 °C	IP67	1.181 "	30 mm	9.843 "	250 mm	Ultrasonic
SICK, Inc. 6048401	30 VDC	10 VDC 15 VDC	Nickel-Plated Brass	Connector	Analog Voltage		Cylinder Threaded - M18	LED	70 °C	-25 °C	IP67	2.559 in	65 mm	13.78 "	350 mm	Ultrasonic
SICK, Inc. 6048420	30 VDC	10 VDC	Polybutylene Terephthalate (PBT)	Connector	PNP	10 Hz	Cylinder Threaded - M18	LED	70 °C	-25 °C	IP67	4.724 "	120 mm	39.37 in	1000 mm	Ultrasonic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 372.41
		5	$ 314.19
		10	$ 292.03
		25	$ 269.88

Description

General part information

UM18 Series

SENSOR PROX ULTRA 120-1000MM CYL

Documents

Technical documentation and resources
