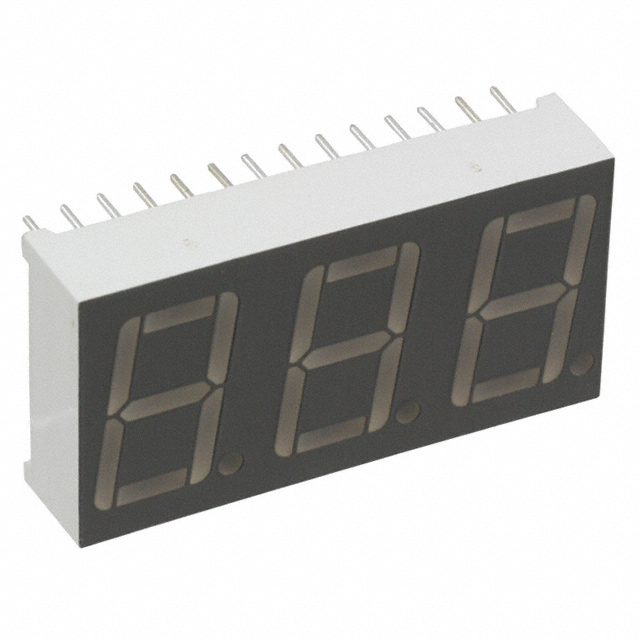

LDT-A514RI
ActiveLumex Opto/Components Inc.
DISPLAY 7SEG 0.56" TRP RED 28DIP
Deep-Dive with AI
Search across all available documentation for this part.
LDT-A514RI
ActiveLumex Opto/Components Inc.
DISPLAY 7SEG 0.56" TRP RED 28DIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LDT-A514RI |
|---|---|
| Color | Red |
| Common Pin | Common Anode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 0.56 in |
| Digit/Alpha Size | 14.22 mm |
| Display Type | 7-Segment |
| Millicandela Rating | 0.03 mcd |
| Number of Characters | 3 |
| Package / Case | 28-DIP |
| Package / Case | 0.6 in |
| Package / Case | 15.24 mm |
| Power Dissipation (Max) [Max] | 105 mW |
| Size / Dimension [x] | 19 mm |
| Size / Dimension [x] | 0.748 in |
| Size / Dimension [y] | 37.8 mm |
| Size / Dimension [y] | 1.488 in |
| Size / Dimension [z] | 8 mm |
| Size / Dimension [z] | 0.315 " |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Peak | 635 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.38 | |
| 10 | $ 2.26 | |||
| 100 | $ 1.69 | |||
| 500 | $ 1.47 | |||
| 1000 | $ 1.40 | |||
| 2000 | $ 1.34 | |||
| 5000 | $ 1.28 | |||
Description
General part information
LDT-A514 Series
Display Modules - LED Character and Numeric Red 7-Segment 3 Character Common Anode 2.1V 10mA 0.748" H x 1.488" W x 0.315" D (19.00mm x 37.80mm x 8.00mm) 28-DIP (0.600", 15.24mm)
