E2044S.41.10

Active

Prysmian Group

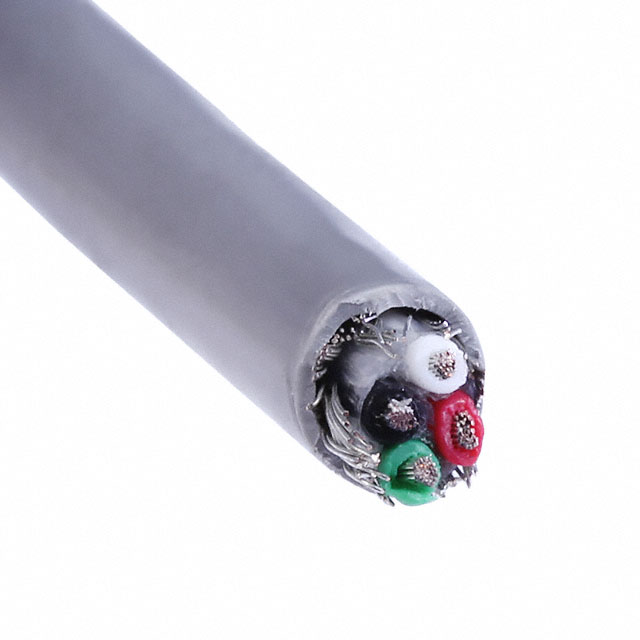

CABLE 4COND 16AWG GRAY SHLD 100'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 4COND 16AWG GRAY SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	E2044S.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	19
Conductor Strand [custom]	0.0117 in
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	5.44 mm
Jacket (Insulation) Diameter [diameter]	0.214 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Gray
Length	15.24 m, 304.8 m
Length	1000 ft
Length [x]	50 ft, 100 ft
Length [x]	30.5 m
Number of Conductors	4
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Sound, Security, Alarm
Voltage	300 V
Wire Gauge	16 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Features	Length	Length [x]	Jacket (Insulation) Material	Length [x]	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Shield Type	Jacket Color	Shield Coverage	Wire Gauge	Voltage	Usage	Length	Shield Material	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]
Prysmian Group E2044S.41.10	0.015 in	0.381 mm	4	Drain Wire Rip Cord	15.24 m 304.8 m	50 ft 100 ft	Poly-Vinyl Chloride (PVC)	30.5 m	Copper Bare	5.44 mm	0.214 in	Poly-Vinyl Chloride (PVC)	Foil	Gray	100 %	16 AWG	300 V	Alarm Security Sound	1000 ft	Flexfoil®	Multi-Conductor	19	0.0117 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Gray 16 AWG Foil 100.0' (30.5m)
