09307161520

Active

HARTING Technology Group

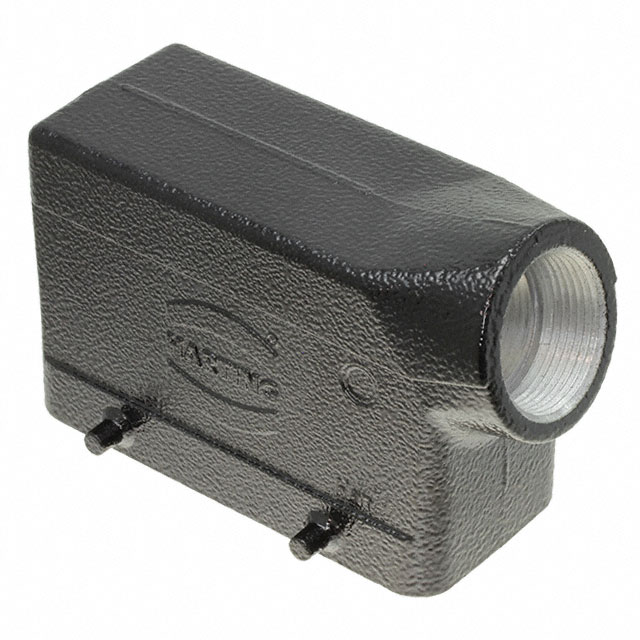

16B HOOD SIDE ENTRY, DOUBLE LEVER, LOW CONSTRUCTION, PG21 - BLACK

Search across all available documentation for this part.

Active

HARTING Technology Group

16B HOOD SIDE ENTRY, DOUBLE LEVER, LOW CONSTRUCTION, PG21 - BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	09307161520

Connector Type	Hood
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Size / Dimension [x]	93.5 mm
Size / Dimension [x]	3.681 "
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	62.5 mm
Size / Dimension [z]	2.461 in
Style	Side Entry
Thread Size	PG21

Part	Ingress Protection	Housing Color	Housing Material	Style	Thread Size	Connector Type	Lock Location	Size	Housing Finish	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]
HARTING Technology Group 09307161520	IP65 - Dust Tight Water Resistant	Black	Aluminum Die Cast	Side Entry	PG21	Hood	Locking Clip (2) on Base Bottom	16 B	Powder Coated	93.5 mm	3.681 "	62.5 mm	1.693 in	2.461 in	43 mm	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry PG21 16B IP65 - Dust Tight, Water Resistant
