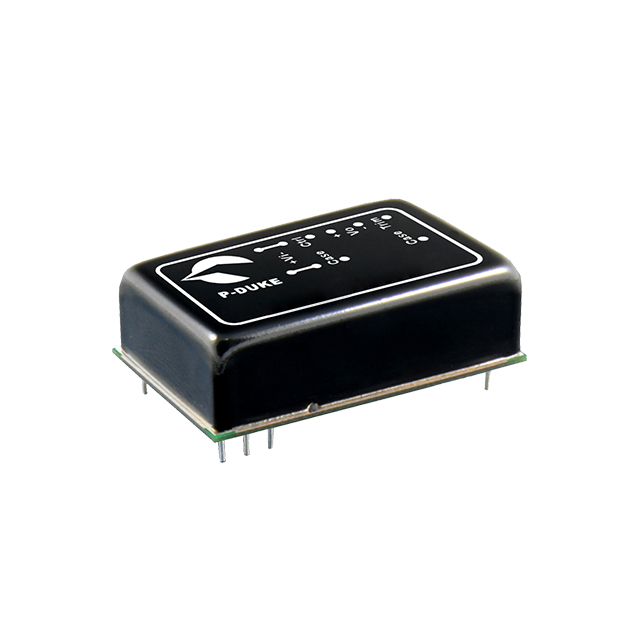

LKC05-24D15W
ActiveP-DUKE Technology
DC DC CONVERTER +/-15V 5W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LKC05-24D15W
ActiveP-DUKE Technology
DC DC CONVERTER +/-15V 5W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LKC05-24D15W |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) | 166 mA |
| Current - Output (Max) | 166 mA |
| Efficiency | 86 % |
| Features | Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-DIP Module |
| Package / Case | 12 Leads |
| Power (Watts) | 5 W |
| Size / Dimension [x] | 31.8 mm |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.6 kV |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | -15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 59.75 | |
| 10 | $ 52.52 | |||
| 25 | $ 49.89 | |||
| 50 | $ 47.99 | |||
| 100 | $ 46.16 | |||
Description
General part information
LKC05 Series
Isolated Module DC DC Converter 2 Output 15V -15V 166mA, 166mA 9V - 36V Input
