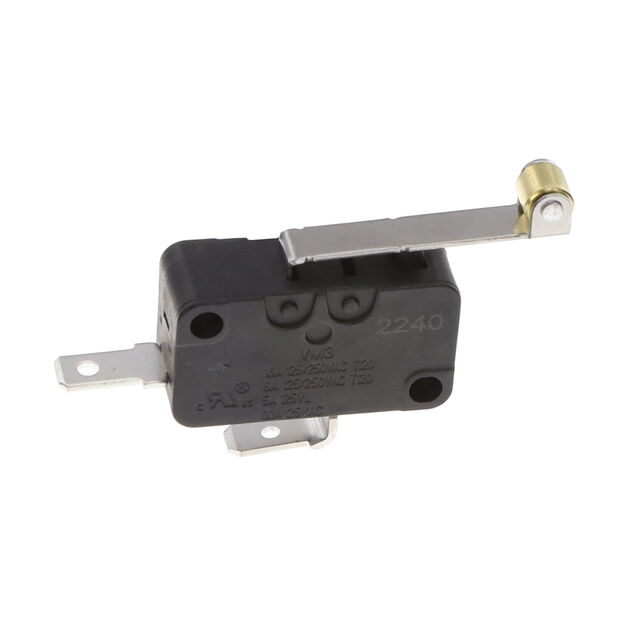

VM3AQF1802L01

Active

CIT Relay and Switch

SWITCH LIMIT SPST-NO 16A 125V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH LIMIT SPST-NO 16A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Differential Travel	Differential Travel	Circuit	Current Rating (Amps)	Switch Function	Actuator Type	Operating Force	Voltage Rating - AC	Operating Position	Operating Position	Overtravel	Overtravel	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Mechanical Life	Pretravel	Pretravel	Release Force
CIT Relay and Switch VM3AQF0802L00	0.016 "	0.4 mm	SPST-NO	16 A	Off-Mom	Round (Pin Plunger)	80 gf	125 V	0.562 in	14.3 mm	0.045 in	1.1 mm	Chassis Mount	-40 °C	120 °C	Quick Connect - 0.187" (4.7mm)	10000000 Cycles	1.4 mm	0.055 in
CIT Relay and Switch VM3AQF0801L00	0.016 "	0.4 mm	SPST-NO	16 A	Off-Mom	Round (Pin Plunger)	80 gf	125 V	0.562 in	14.3 mm	0.045 in	1.1 mm	Chassis Mount	-40 °C	120 °C	Quick Connect - 0.250" (6.3mm)	10000000 Cycles	1.4 mm	0.055 in
CIT Relay and Switch VM3AQF1801L00	0.016 "	0.4 mm	SPST-NO	16 A	Off-Mom	Round (Pin Plunger)	180 gf	125 V	0.562 in	14.3 mm	0.045 in	1.1 mm	Chassis Mount	-40 °C	120 °C	Quick Connect - 0.250" (6.3mm)	10000000 Cycles	1.4 mm	0.055 in	90 gf
CIT Relay and Switch VM3AQF1101L03	0.025 in	0.6 mm	SPST-NO	16 A	Off-Mom	Lever Straight	50 gf	125 V	0.551 "	14 mm	0.09 in	2.3 mm	Chassis Mount	-40 °C	120 °C	Quick Connect - 0.250" (6.3mm)	10000000 Cycles	3.3 mm	0.131 in	50 gf
CIT Relay and Switch VM3AQF1802L01	0.027 "	0.7 mm	SPST-NO	16 A	Off-Mom	Lever Roller	80 gf	125 V	0.732 in	18.6 mm	0.1 in	2.5 mm	Chassis Mount	-40 °C	120 °C	Quick Connect - 0.187" (4.7mm)	10000000 Cycles	3.7 mm	0.146 in	60 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPST-NO Chassis Mount
