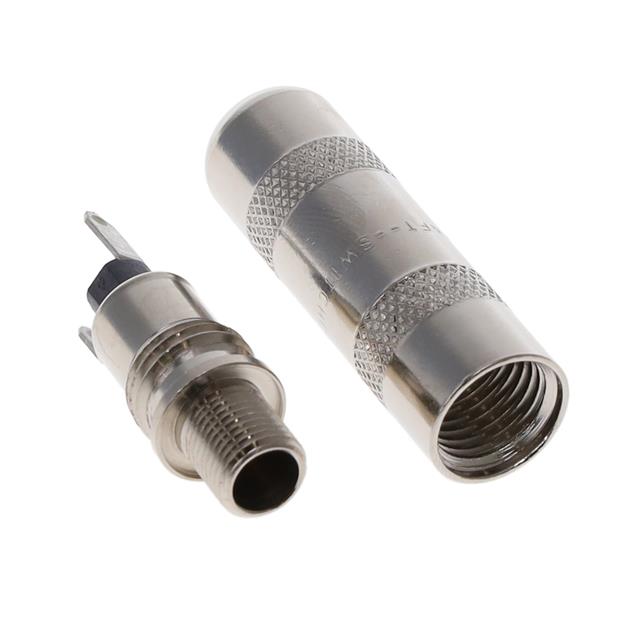

ST10UC1

Active

Switchcraft Inc.

DC POWER JACK, IN-LINE, 11 AMP,

Search across all available documentation for this part.

Active

Switchcraft Inc.

DC POWER JACK, IN-LINE, 11 AMP,

Technical Specifications

Parameters and characteristics for this part

Specification	ST10UC1

Actual Diameter	0.075 in
Actual Diameter	1.9 mm ID
Body Color	Silver, Black
Body Material	Copper Alloy
Connector Type	Jack
Contact Material	Copper Alloy
Contact Material - Plating	Tin
Current Rating (Amps)	11 A
Gender	Male
Housing Material	Thermoplastic
Industry Recognized Mating Diameter	1.9 mm ID
Industry Recognized Mating Diameter	0.075 in
Insulation Color	Black
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shielding	Unshielded
Termination	Solder Eyelet(s)
Voltage - Rated	24 VDC

Part	Termination	Body Color	Voltage - Rated	Body Material	Number of Positions/Contacts	Actual Diameter	Actual Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current Rating (Amps)	Housing Material	Gender	Shielding	Contact Material	Connector Type	Contact Material - Plating
Switchcraft Inc. ST10UC	Solder Eyelet(s)	Black Silver	24 VDC	Copper Alloy	2 Conductors 3 Conductors	0.075 in	1.9 mm ID	1.9 mm ID	0.075 in	Black	-40 °C	105 ░C	Free Hanging (In-Line)	11 A	Thermoplastic	Male	Unshielded	Copper Alloy	Jack	Tin
Switchcraft Inc. ST10UC1	Solder Eyelet(s)	Black Silver	24 VDC	Copper Alloy	2 Conductors 3 Conductors	0.075 in	1.9 mm ID	1.9 mm ID	0.075 in	Black	-40 °C	105 ░C	Free Hanging (In-Line)	11 A	Thermoplastic	Male	Unshielded	Copper Alloy	Jack	Tin
