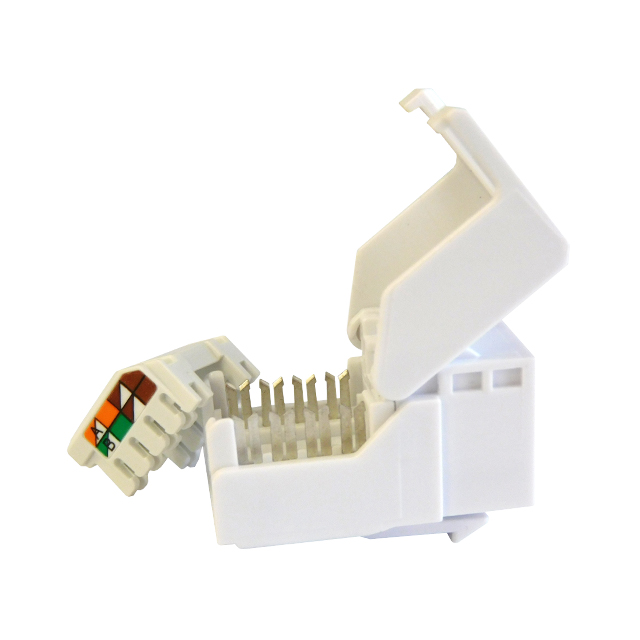

SS-82000-005

Active

BEL MAGNETIC SOLUTIONS

MOD JACK KEYSTONE CAT5E UNSHLD

Search across all available documentation for this part.

Active

BEL MAGNETIC SOLUTIONS

MOD JACK KEYSTONE CAT5E UNSHLD

Technical Specifications

Parameters and characteristics for this part

Specification	SS-82000-005

Exterior Contact Finish	Gold
Exterior Contact Finish Thickness	1.27 Ám
Exterior Contact Finish Thickness	50 Áin
Exterior Contact Material	Phosphor Bronze
Exterior Type (Adapter End)	Modular Jack 8p8c (RJ45, Ethernet)
Features	Latch Lock
Interior Contact Finish	Tin
Interior Contact Finish Thickness	2.54 µm
Interior Contact Finish Thickness	100 µin
Interior Contact Material	Phosphor Bronze
Interior Type (Adapter End)	Pressdown, IDC, Punchdown Block
Ratings	Cat5e
Style	Modular

Part	Features	Exterior Contact Material	Exterior Contact Finish Thickness	Exterior Contact Finish Thickness	Exterior Contact Finish	Style	Interior Type (Adapter End)	Ratings	Exterior Type (Adapter End)	Interior Contact Material	Interior Contact Finish	Interior Contact Finish Thickness	Interior Contact Finish Thickness
BEL MAGNETIC SOLUTIONS SS-82000-004	Panel Lock Panel Stops	Phosphor Bronze	1.27 Ám	50 Áin	Gold	Modular	Modular Jack 8p8c (RJ45 Ethernet)	Cat5e	Modular Jack 8p8c (RJ45 Ethernet)	Phosphor Bronze
BEL MAGNETIC SOLUTIONS SS-82000-005	Latch Lock	Phosphor Bronze	1.27 Ám	50 Áin	Gold	Modular	IDC Pressdown Punchdown Block	Cat5e	Modular Jack 8p8c (RJ45 Ethernet)	Phosphor Bronze	Tin	2.54 µm	100 µin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Insert Modular Jack 8p8c (RJ45, Ethernet) To IDC, Pressdown, Punchdown Block

Technical documentation and resources

No documents available
