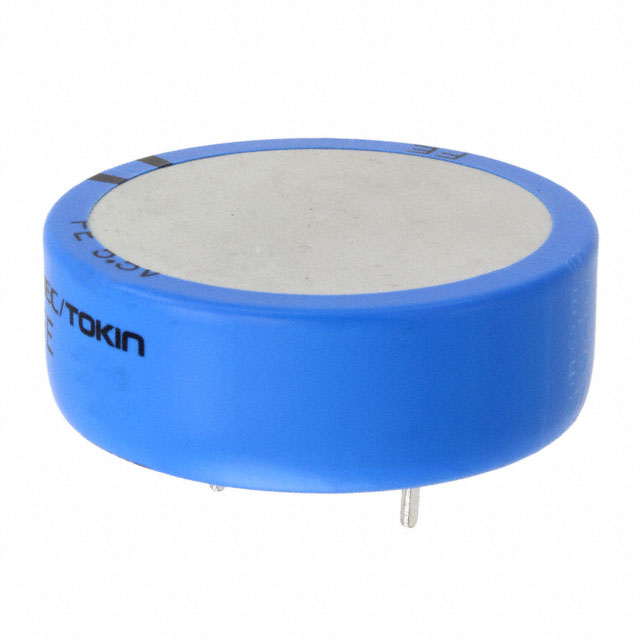

FE0H105ZF

Active

KEMET

CAP 1F -20% +80% 5.5V T/H

Search across all available documentation for this part.

Active

KEMET

CAP 1F -20% +80% 5.5V T/H

Technical Specifications

Parameters and characteristics for this part

Specification	FE0H105ZF

Capacitance	1 F
ESR (Equivalent Series Resistance)	1 Ohm
Height - Seated (Max) [Max]	18.5 mm
Height - Seated (Max) [Max]	0.728 in
Lead Spacing	15 mm
Lead Spacing	0.591 in
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Size / Dimension [diameter]	1.437 in
Size / Dimension [diameter]	36.5 mm
Termination	PC Pins
Tolerance [Max]	80 %
Tolerance [Min]	-20 %
Voltage - Rated	5.5 V

Part	Capacitance	Tolerance [Max]	Tolerance [Min]	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Termination	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max)	Height - Seated (Max) [Max]	ESR (Equivalent Series Resistance)	Lead Spacing	Lead Spacing	Mounting Type	Height - Seated (Max) [Max]
KEMET FE0H473ZF	47 mF	80 %	-20 %	5.5 V	0.571 inches	14.5 mm	PC Pins	Radial Can	-40 °C	70 °C	14 mm	0.551 "	14 Ohm	5.1 mm	0.201 in	Through Hole
KEMET FE0H104ZF	0.1 F	80 %	-20 %	5.5 V			PC Pins	Radial Can	-40 °C	70 °C	14 mm	0.551 "	6.5 Ohm	5.1 mm	0.201 in	Through Hole
KEMET FE0H155ZF	1.5 F	80 %	-20 %	5.5 V	1.752 in	44.5 mm	PC Pins	Radial Can	-40 °C	70 °C		0.728 in	600 mOhm	20 mm	0.787 in	Through Hole	18.5 mm
KEMET FE0H105ZF	1 F	80 %	-20 %	5.5 V	1.437 in	36.5 mm	PC Pins	Radial Can	-40 °C	70 °C		0.728 in	1 Ohm	15 mm	0.591 in	Through Hole	18.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 F (EDLC) Supercapacitor 5.5 V Radial, Can 1Ohm @ 1kHz
