CT2846-10-4
ActiveCal Test Electronics
TEST LEAD TIP PLUG TO SOCKET 4"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CT2846-10-4 |
|---|---|
| 1st Connector | Tip Plug |
| 2nd Connector | 0.03 in |
| 2nd Connector | 0.76 mm |
| Cable Length [x] | 4 in |
| Cable Length [x] | 101.6 mm |
| Configuration | Pin Tip to Socket |
| Contents | Yellow, 1 Lead |
| Current Rating (Amps) | 2 A |
| Material - Insulation | Silicone |
| Temperature Range [Max] | 80 °C |
| Temperature Range [Min] | -20 °C |
| Voltage - Rated | 33 VAC, 70 V |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.85 | |
Description
General part information
CT2846 Series

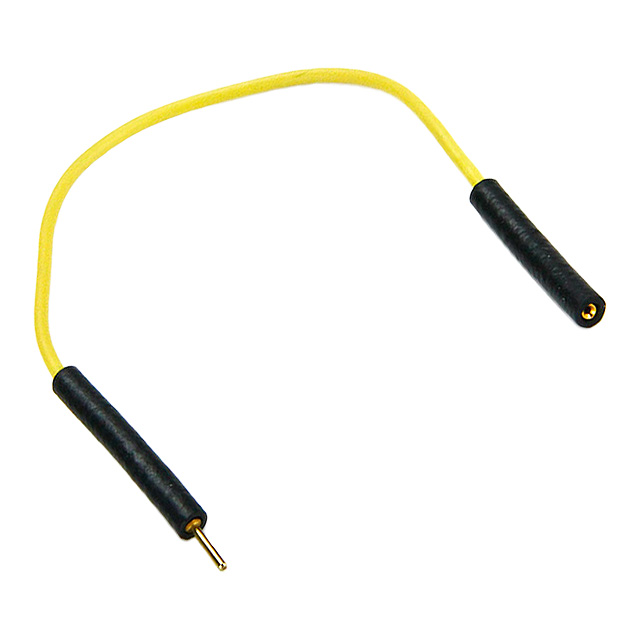

4.0" (101.60mm) Tip Plug To Socket, Round, 0.030" (0.76mm) Test Lead 33VAC, 70VDC 1 Lead, Yellow
