RT9047GG5

Obsolete

Richtek USA Inc.

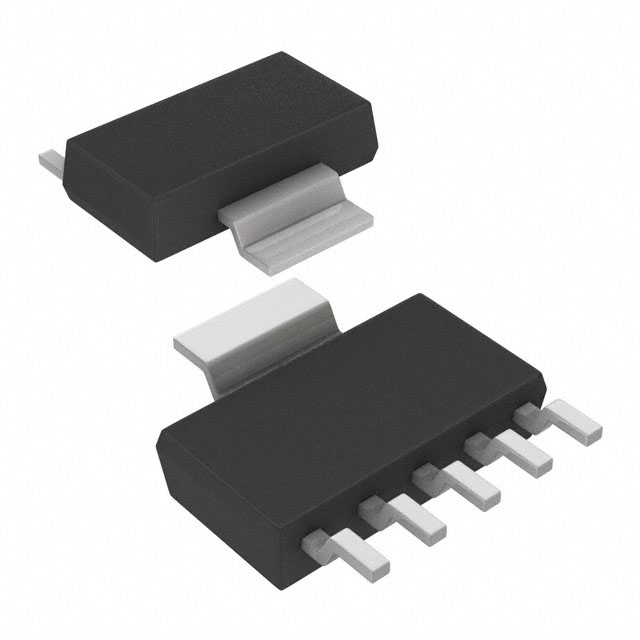

IC REG LINEAR POS ADJ 1A SOT223

Search across all available documentation for this part.

Obsolete

Richtek USA Inc.

IC REG LINEAR POS ADJ 1A SOT223

Technical Specifications

Parameters and characteristics for this part

Specification	RT9047GG5

Control Features	Enable
Current - Output	1 A
Current - Quiescent (Iq)	0.6 mA
Current - Supply (Max) [Max]	800 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	Adjustable
Package / Case	SOT-223-6
Protection Features	Over Current, Over Temperature
PSRR [Max]	55 dB
PSRR [Min]	35 dB
Supplier Device Package	SOT-223-5
Voltage - Input (Max) [Max]	5.5 V
Voltage - Output (Max) [Max]	5.2 V
Voltage - Output (Min/Fixed)	1.2 V
Voltage Dropout (Max) [Max]	0.2 V

Part	Voltage - Output (Max) [Max]	Voltage - Input (Max) [Max]	Control Features	Supplier Device Package	Package / Case	PSRR [Max]	PSRR [Min]	Voltage - Output (Min/Fixed)	Mounting Type	Current - Output	Output Type	Protection Features	Output Configuration	Current - Supply (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Regulators	Current - Quiescent (Iq)	Voltage Dropout (Max) [Max]
Richtek USA Inc. RT9047GG5	5.2 V	5.5 V	Enable	SOT-223-5	SOT-223-6	55 dB	35 dB	1.2 V	Surface Mount	1 A	Adjustable	Over Current Over Temperature	Positive	800 µA	85 °C	-40 °C	1	0.6 mA	0.2 V
