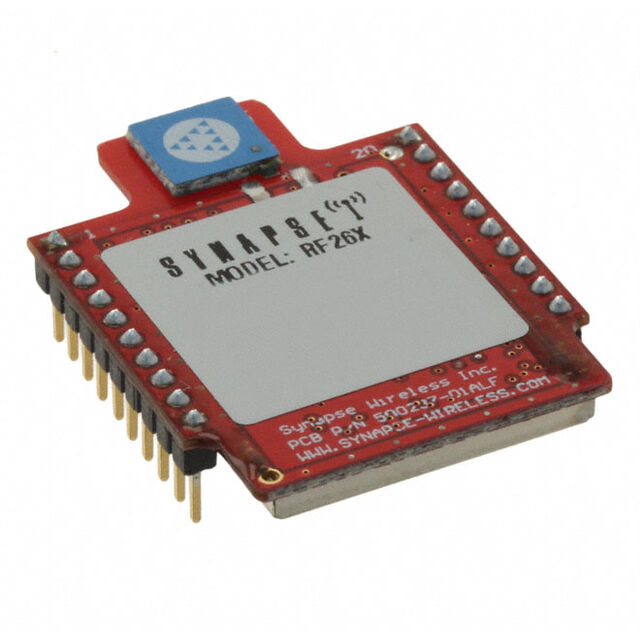

RF266PC1
ObsoleteSynapse Wireless
RF TXRX MOD 802.15.4 CHIP TH
Deep-Dive with AI
Search across all available documentation for this part.
RF266PC1
ObsoleteSynapse Wireless
RF TXRX MOD 802.15.4 CHIP TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RF266PC1 |
|---|---|
| Antenna Type | Integrated, Chip |
| Current - Receiving | 25 mA |
| Current - Transmitting | 130 mA |
| Data Rate | 2 Mbps |
| Frequency | 2.4 GHz |
| Memory Size | 4 kB, 58 kB, 128 kB |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 20-DIP Module |
| Power - Output | 20 dBm |
| RF Family/Standard | 802.15.4 |
| Sensitivity | -103 dBm |
| Serial Interfaces | I2C, SPI |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
RF266 Series
802.15.4 Transceiver Module 2.4GHz Integrated, Chip Through Hole
Documents
Technical documentation and resources
No documents available
