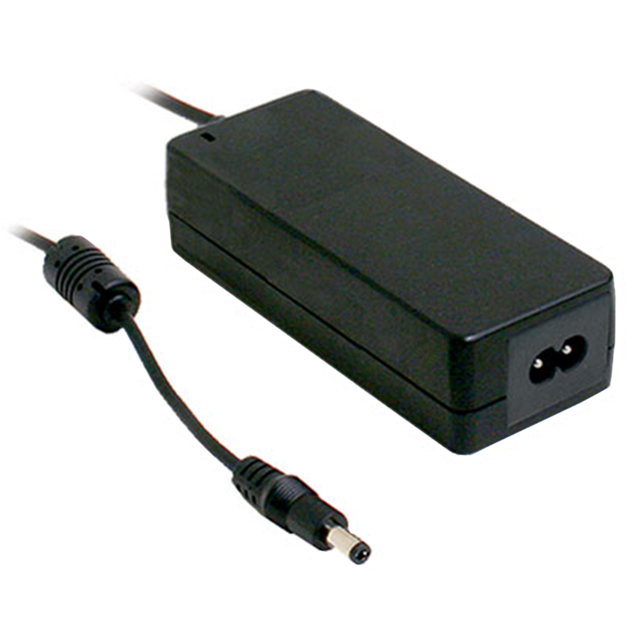

GSM40B05-P1J
ActiveMEAN WELL USA Inc.
AC/DC DESKTOP ADAPTER 5V 25W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GSM40B05-P1J
ActiveMEAN WELL USA Inc.
AC/DC DESKTOP ADAPTER 5V 25W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GSM40B05-P1J |
|---|---|
| Applications | Medical |
| Approval Agency | CB, CE, cURus, TUV |
| Cord Length | 1 m |
| Cord Length | 39.4 " |
| Current - Output (Max) [Max] | 5 A |
| Efficiency | Level V |
| Form | Desktop (Class II) |
| Input Connector | IEC 320-C8 |
| Input Type | Cord |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.1 mm |
| Output Connector [z] | 11 mm |
| Polarization | Positive Center |
| Power (Watts) | 25 W |
| Region Utilized | International |
| Size / Dimension [x] | 125 mm |
| Size / Dimension [x] | 4.92 in |
| Size / Dimension [y] | 2.36 " |
| Size / Dimension [y] | 60 mm |
| Size / Dimension [z] | 1.26 in |
| Size / Dimension [z] | 32 mm |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 80 VAC |
| Voltage - Output | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 20.90 | |
| 5 | $ 19.90 | |||
| 10 | $ 19.00 | |||
| 25 | $ 18.50 | |||
Description
General part information
GSM40B05 Series
5V 25 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
