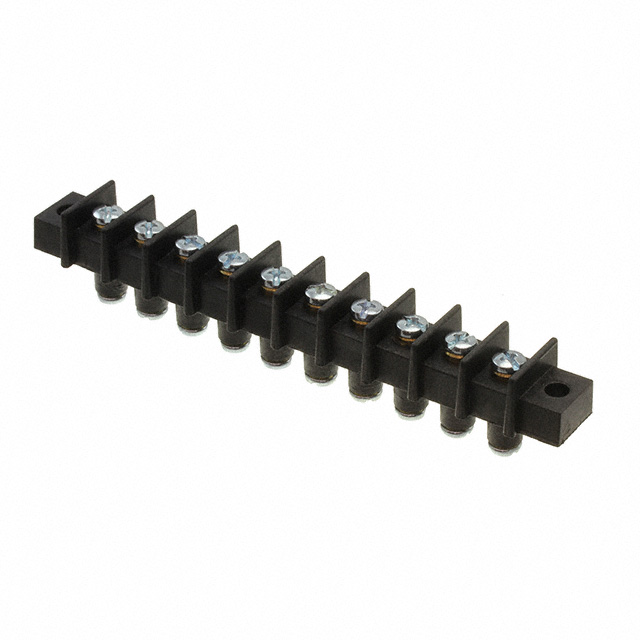

GFTSX-10

Active

Curtis Industries

CONN BARRIER STRP 10CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GFTSX-10

Active

Curtis Industries

CONN BARRIER STRP 10CIRC 0.438"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GFTSX-10

Barrier Type	2 Wall (Dual)
Bottom Termination	Insulated, Threaded
Color	Black
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	10
Number of Rows	1
Number of Wire Entries	10
Operating Temperature	110 °C
Pitch [x]	11.12 mm
Pitch [x]	0.438 in
Terminal Block Type	Barrier Block
Terminal Screw Material	Steel
Top Termination	Screws
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

GFTSX Series

Part	Features	Pitch [x]	Pitch [x]	Number of Wire Entries [custom]	Number of Circuits	Color	Bottom Termination	Material - Insulation	Terminal Screw Material	Operating Temperature	Barrier Type	Number of Rows	Top Termination	Current Rating (Amps)	Wire Gauge [Min]	Wire Gauge [Max]	Material Flammability Rating	Terminal Block Type	Mounting Type	Number of Wire Entries
Curtis Industries GFTSX-23	Flange	11.12 mm	0.438 in	23	23	Black	Insulated Threaded	Polyphenylene Oxide (PPO)	Steel	110 °C	2 Wall (Dual)	1	Screws	20 A	12 AWG	22 AWG	UL94 V-0	Barrier Block	Chassis Panel
Curtis Industries GFTSX-3	Flange	11.12 mm	0.438 in		3	Black	Insulated Threaded	Polyphenylene Oxide (PPO)	Steel	110 °C	2 Wall (Dual)	1	Screws	20 A	12 AWG	22 AWG	UL94 V-0	Barrier Block	Chassis Panel	3
Curtis Industries GFTSX-25	Flange	11.12 mm	0.438 in		25	Black	Insulated Threaded	Polyphenylene Oxide (PPO)	Steel	110 °C	2 Wall (Dual)	1	Screws	20 A	12 AWG	22 AWG	UL94 V-0	Barrier Block	Chassis Panel	25
Curtis Industries GFTSX-19	Flange	11.12 mm	0.438 in		19	Black	Insulated Threaded	Polyphenylene Oxide (PPO)	Steel	110 °C	2 Wall (Dual)	1	Screws	20 A	12 AWG	22 AWG	UL94 V-0	Barrier Block	Chassis Panel	19
Curtis Industries GFTSX-17	Flange	11.12 mm	0.438 in		17	Black	Insulated Threaded	Polyphenylene Oxide (PPO)	Steel	110 °C	2 Wall (Dual)	1	Screws	20 A	12 AWG	22 AWG	UL94 V-0	Barrier Block	Chassis Panel	17
Curtis Industries GFTSX-13	Flange	11.12 mm	0.438 in		13	Black	Insulated Threaded	Polyphenylene Oxide (PPO)	Steel	110 °C	2 Wall (Dual)	1	Screws	20 A	12 AWG	22 AWG	UL94 V-0	Barrier Block	Chassis Panel	13
Curtis Industries GFTSX-10	Flange	11.12 mm	0.438 in		10	Black	Insulated Threaded	Polyphenylene Oxide (PPO)	Steel	110 °C	2 Wall (Dual)	1	Screws	20 A	12 AWG	22 AWG	UL94 V-0	Barrier Block	Chassis Panel	10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.92
		10	$ 20.07
		25	$ 18.00
		50	$ 16.78
		100	$ 15.81
		250	$ 14.83
		500	$ 14.28

Description

General part information

GFTSX Series

10 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
