UM3202H
ActiveUnion Semiconductor International Limited
IC TRANSLTR BIDIRECTIONAL 8CSP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UM3202H
ActiveUnion Semiconductor International Limited
IC TRANSLTR BIDIRECTIONAL 8CSP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UM3202H |
|---|---|
| Channel Type | Bidirectional |
| Channels per Circuit | 2 |
| Data Rate | 24 Mbps |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Open Drain, Push-Pull |

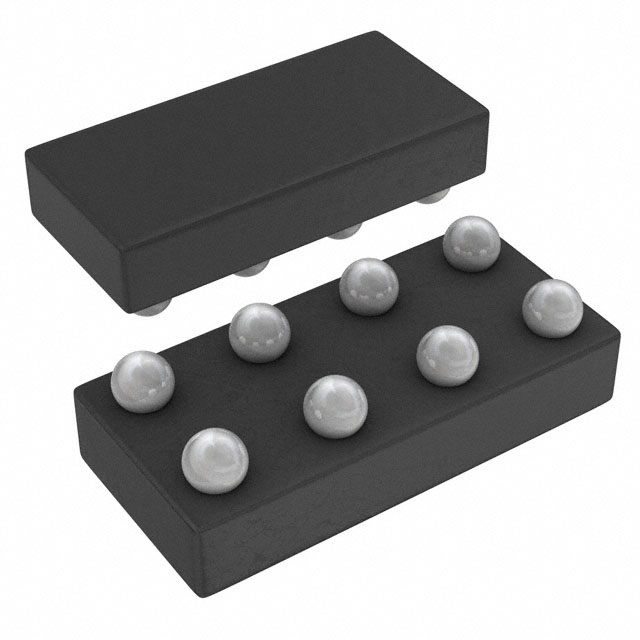

| Package / Case | 8-WFBGA, CSPBGA |
| Supplier Device Package | 8-CSP |
| Supplier Device Package [x] | 1.9 |
| Supplier Device Package [y] | 0.9 |
| Translator Type | Voltage Level |
| Voltage - VCCA [Max] | 3.6 V |
| Voltage - VCCA [Min] | 1.65 V |
| Voltage - VCCB [Max] | 5.5 V |
| Voltage - VCCB [Min] | 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 10 | $ 0.41 | |
| 100 | $ 0.22 | |||
| 500 | $ 0.18 | |||
Description
General part information
UM3202 Series
Voltage Level Translator Bidirectional 1 Circuit 2 Channel 24Mbps 8-CSP (1.9x0.9)
