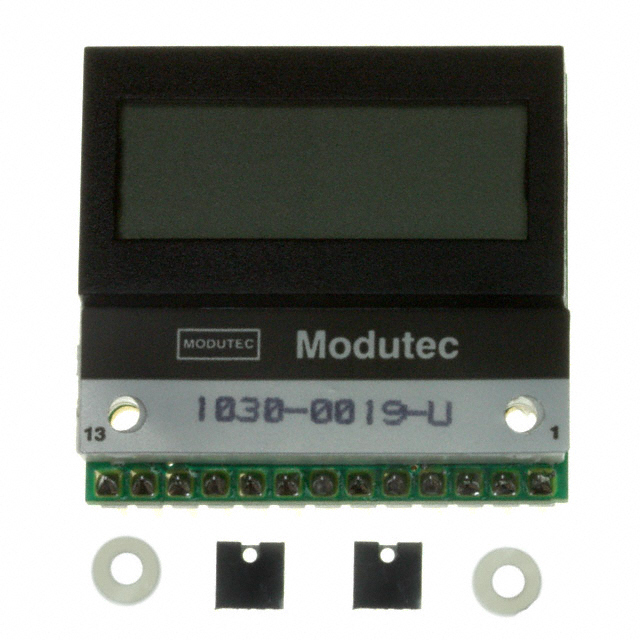

1030-0019-U
UnknownJewell Instruments LLC
PROCESS METER 4-20MA LCD PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1030-0019-U
UnknownJewell Instruments LLC
PROCESS METER 4-20MA LCD PNL MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1030-0019-U |
|---|---|
| Display Characters - Height [z] | 0.299 in |
| Display Characters - Height [z] | 7.6 mm |
| Measuring Type | Process |
| Mounting Type | Panel Mount - Bezel, Window |
| Number of Characters Per Row | 3.5 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Panel Cutout Dimensions [x] | 35.56 mm |
| Panel Cutout Dimensions [y] | 19.3 mm |
| Termination Style | PC Pin |
| Type | Process Meter |
| Voltage - Supply | Loop Power |
| Weight | 0.065 lb |
| Weight | 29.48 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 88.61 | |
Description
General part information
1030-0019 Series
Process Meter LCD - Black Characters, Green Backlight Display Panel Mount - Bezel, Window
Documents
Technical documentation and resources
