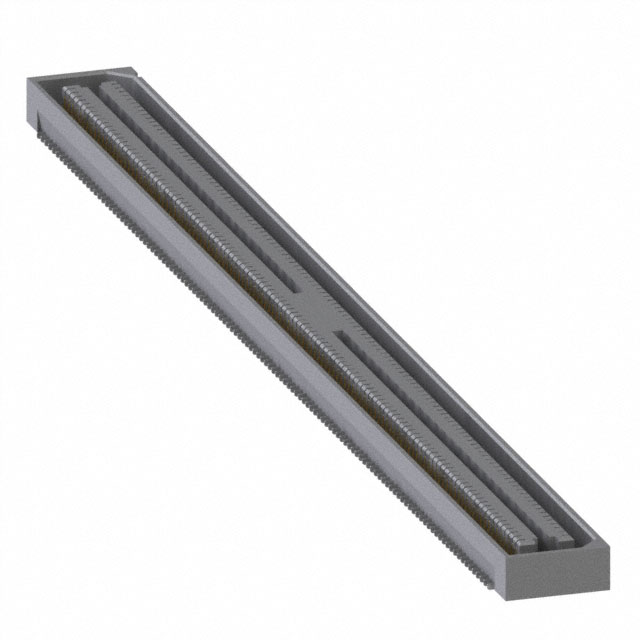

BSE-120-01-F-D

Active

Samtec Inc.

CONN RCPT 240POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 240POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	BSE-120-01-F-D

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	Flash
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mated Stacking Heights	8 mm, 5 mm
Mounting Type	Surface Mount
Number of Positions	240
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Mated Stacking Heights	Number of Rows	Mounting Type	Pitch [x]	Pitch [x]	Connector Type	Number of Positions	Height Above Board	Height Above Board	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Contact Finish Thickness
Samtec Inc. BSE-120-01-H-D-LC	5 mm 8 mm	2	Surface Mount	0.8 mm	0.031 in	Center Strip Contacts Receptacle	240	3.25 mm	0.128 in	Gold
Samtec Inc. BSE-120-01-L-D-EM2		2	Board Edge Straddle Mount	0.8 mm	0.031 in	Center Strip Contacts Receptacle	240			Gold	10 Áin	0.25 Ám
Samtec Inc. BSE-120-01-F-D	5 mm 8 mm	2	Surface Mount	0.8 mm	0.031 in	Center Strip Contacts Receptacle	240	3.25 mm	0.128 in	Gold			Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

240 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
