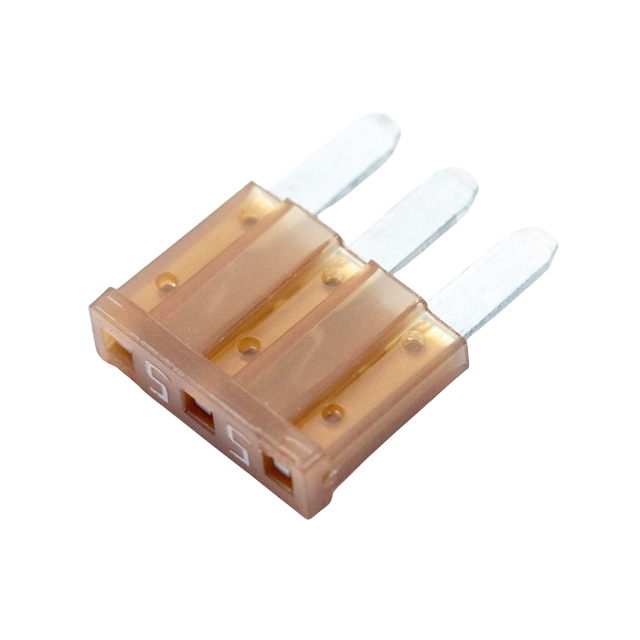

ANK-5A
ActiveOptiFuse
FUSE AUTO 5A 32VDC BLADE MICRO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANK-5A
ActiveOptiFuse
FUSE AUTO 5A 32VDC BLADE MICRO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANK-5A |
|---|---|
| Approval Agency | ISO, SAE |
| Breaking Capacity @ Rated Voltage | 1 kA |
| Color | Tan |
| Current Rating (Amps) | 5 A |
| Fuse Type | Automotive |
| Mounting Type | Requires Holder |
| Package / Case | Blade, Micro |
| Response Time | Fast Blow |
| Size / Dimension [x] | 0.563 in |
| Size / Dimension [x] | 14.3 mm |
| Size / Dimension [y] | 0.165 " |
| Size / Dimension [y] | 4.2 mm |
| Size / Dimension [z] | 10.6 mm |
| Size / Dimension [z] | 0.417 " |
| Voltage Rating - DC | 32 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.09 | |
| 10 | $ 1.06 | |||
| 25 | $ 1.03 | |||
| 50 | $ 0.87 | |||
| 100 | $ 0.71 | |||
| 250 | $ 0.64 | |||
| 500 | $ 0.54 | |||
| 1000 | $ 0.47 | |||
Description
General part information
ANK-5 Series
5 A AC 32 V DC Fuse Automotive Requires Holder Blade, Micro
