ERA.1S.120.CTL

Active

LEMO

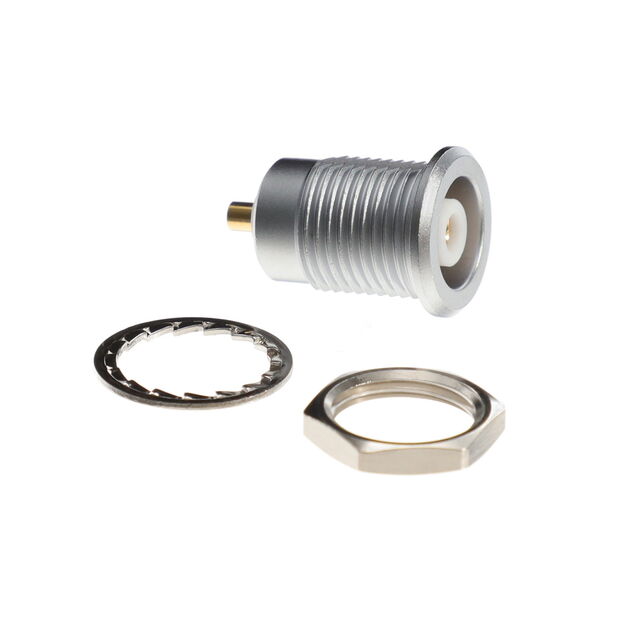

CONN RCPT FMALE 1P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ERA.1S.120.CTL

Active

LEMO

CONN RCPT FMALE 1P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERA.1S.120.CTL

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Bronze
Current Rating (Amps)	18 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polytetrafluoroethylene (PTFE)
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	1
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	120
Shielding	Shielded

ERA.1S Series

Part	Fastening Type	Shell Material	Insert Material	Mounting Feature	Shell Size - Insert	Current Rating (Amps)	Connector Type	Material Flammability Rating	Contact Material	Ingress Protection	Shielding	Color	Contact Finish - Mating	Shell Finish	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Number of Positions	Connector Style	Dielectric Material	Shield Termination	Mating Cycles	Housing Color	Center Contact Plating	Body Material	Center Contact Material	Contact Termination	Cable Group	Body Finish	Includes	Impedance	Termination
LEMO ERA.1S.305.CLL	Push-Pull	Brass	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut	305	7 A 10 A	Female Sockets Male Pins Receptacle	UL94 V-0	Brass Bronze	IP50	Shielded	Silver	Gold	Chrome	Metal	-55 °C	250 °C	Keyed
LEMO ERA.1S.302.CLL	Push-Pull	Brass	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut	302	15 A	Female Sockets Male Pins Receptacle	UL94 V-0	Brass Bronze	IP50	Shielded	Silver	Gold	Chrome	Metal	-55 °C	250 °C	Keyed	2
LEMO ERA.1S.405.CLL	Push-Pull	Brass	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut	405	8 A	Receptacle Female Sockets	UL94 V-0	Bronze	IP50	Shielded	Silver	Gold	Chrome	Metal	-55 °C	250 °C	Keyed	1
LEMO ERA.1S.275.CLL	Push-Pull			Bulkhead - Rear Side Nut			Female Socket Receptacle			IP50						-55 °C	250 °C			Coaxial	Polyetheretherketone (PEEK)	Solder	1000	Silver	Gold	Brass	Beryllium Copper	Solder Cup	179B 187A 223 302 400 59B RG-58C	Chrome	1 Connector 1 Lockwasher 1 Nut	75 Ohms
LEMO ERA.1S.302.CYM	Push-Pull	Brass	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut	302	15 A	Female Sockets Male Pins Receptacle	UL94 V-0	Brass Bronze	IP50	Shielded	Silver	Gold	Chrome	Metal	-55 °C	250 °C	Keyed	2														Crimp
LEMO ERA.1S.306.KLL	Push-Pull	Brass	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut	306	7 A	Female Sockets Male Pins Receptacle	UL94 V-0	Brass Bronze	IP50	Shielded	Black	Gold		Metal	-55 °C	250 °C	Keyed	6
LEMO ERA.1S.303.CLL	Push-Pull	Brass	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut	303	10 A	Female Sockets Male Pins Receptacle	UL94 V-0	Brass Bronze	IP50	Shielded	Silver	Gold	Chrome	Metal	-55 °C	250 °C	Keyed
LEMO ERA.1S.304.CLL	Push-Pull	Brass	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut	304	10 A	Female Sockets Male Pins Receptacle	UL94 V-0	Brass Bronze	IP50	Shielded	Silver	Gold	Chrome	Metal	-55 °C	250 °C	Keyed	4
LEMO ERA.1S.303.CLA	Push-Pull	Brass	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut	303	10 A	Female Sockets Male Pins Receptacle	UL94 V-0	Brass Bronze	IP50	Shielded	Silver	Gold	Chrome	Metal	-55 °C	250 °C	Keyed
LEMO ERA.1S.120.CTL	Push-Pull	Brass	Polytetrafluoroethylene (PTFE)	Bulkhead - Rear Side Nut	120	18 A	Receptacle Female Sockets		Bronze	IP50	Shielded	Silver	Gold	Chrome	Metal	-55 °C	250 °C	Keyed	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.13
		10	$ 20.26
		25	$ 19.38
		50	$ 18.76
		100	$ 18.13
		250	$ 17.13
		500	$ 16.63

Description

General part information

ERA.1S Series

1 Position Circular Connector Receptacle, Female Sockets Solder Cup
