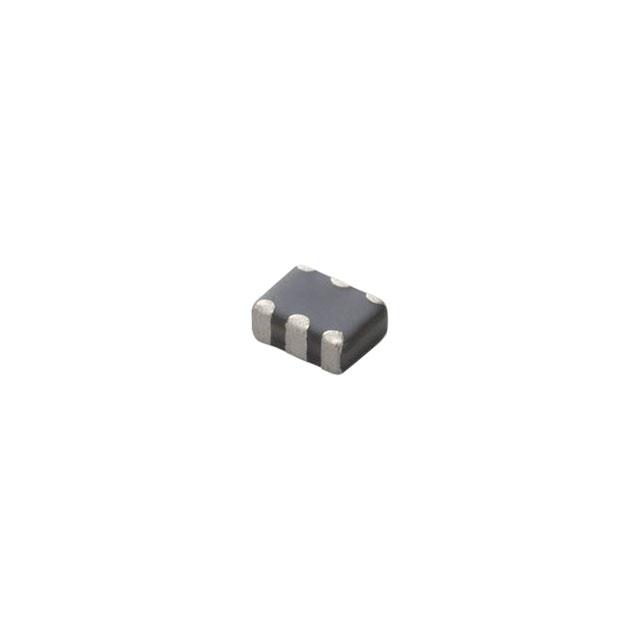

NFG0NCN162HL3D
ActiveMurata Power Solutions Inc.
CMC 100MA 3LN 25 OHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
NFG0NCN162HL3D
ActiveMurata Power Solutions Inc.
CMC 100MA 3LN 25 OHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NFG0NCN162HL3D |
|---|---|
| Current Rating (Max) [Max] | 100 mA |
| Impedance @ Frequency | 25 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0302 |
| Package / Case | 6 Leads |
| Size / Dimension [x] | 0.9 mm |
| Size / Dimension [x] | 0.035 " |
| Size / Dimension [y] | 0.027 " |
| Size / Dimension [y] | 0.68 mm |
| Voltage Rating - DC | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.20 | |
| 10 | $ 0.20 | |||
| 25 | $ 0.19 | |||
| 50 | $ 0.18 | |||
| 100 | $ 0.17 | |||
| 250 | $ 0.14 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.11 | |||
| 5000 | $ 0.09 | |||
| Digi-Reel® | 1 | $ 0.20 | ||
| 10 | $ 0.20 | |||
| 25 | $ 0.19 | |||
| 50 | $ 0.18 | |||
| 100 | $ 0.17 | |||
| 250 | $ 0.14 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.11 | |||
| 5000 | $ 0.09 | |||
| Tape & Reel (TR) | 10000 | $ 0.08 | ||
| 20000 | $ 0.08 | |||
| 30000 | $ 0.08 | |||
Description
General part information
NFG0NCN Series
3 Line Common Mode Choke Surface Mount 25 Ohms @ 100 MHz 100mA DCR
