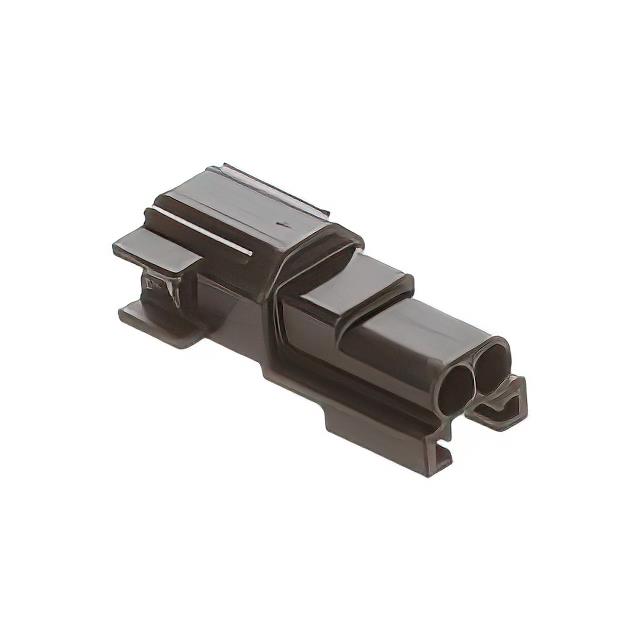

0346750003

Active

Molex

CONN PLUG HSG 2POS 5.00MM

Search across all available documentation for this part.

Active

Molex

CONN PLUG HSG 2POS 5.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	0346750003

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Blade
Fastening Type	Locking Ramp
Features	Terminal Position Lock (TPA)
Insulation Material	Polyamide (PA6), Nylon 6, Glass Filled
Mounting Type	Bracket Mount
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Insulation Material	Features	Pitch [x]	Pitch [x]	Number of Positions	Mounting Type	Number of Rows	Contact Type	Color	Note	Fastening Type	Connector Type
Molex 0346750004	125 °C	-40 °C	Crimp	Polyamide (PA6) Nylon 6 Glass Filled	Terminal Position Lock (TPA)	5 mm	0.197 in	2	Bracket Mount	1	Male Blade	Gray	Contacts Not Included	Locking Ramp	Plug
Molex 0346750003	125 °C	-40 °C	Crimp	Polyamide (PA6) Nylon 6 Glass Filled	Terminal Position Lock (TPA)	5 mm	0.197 in	2	Bracket Mount	1	Male Blade	Black	Contacts Not Included	Locking Ramp	Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Plug Black 0.197" (5.00mm)
