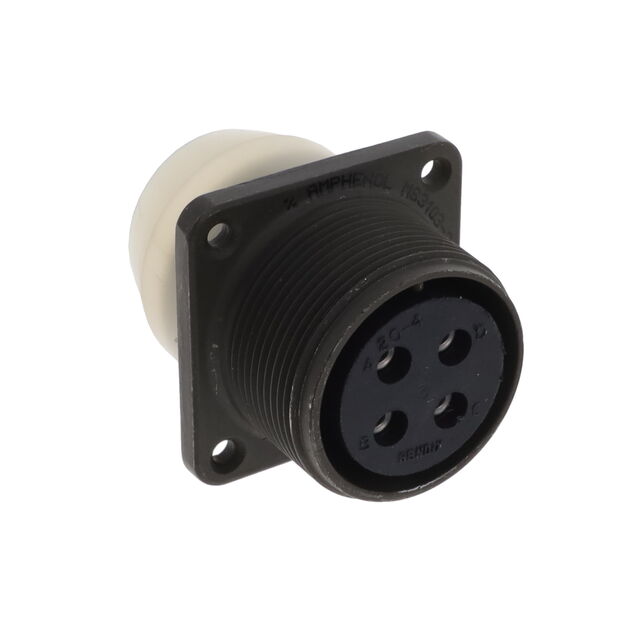

MS3103-20-4S
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3103-20-4S
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED RECEPT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3103-20-4S |
|---|---|
| Applications | Military, Marine |
| Color | Olive Drab |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Features | Potted |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Feature | Flange |
| Number of Positions | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 20-4 |
| Shielding | Unshielded |
MS3103-20 Series
| Part | Insert Material | Shell Size - Insert | Applications | Shell Material | Primary Material | Shielding | Number of Positions | Mounting Feature | Grade | Color | Connector Type | Qualification | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Contact Material | Orientation | Features | Shell Finish | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations | ||||||||||||||||||||
Amphenol Industrial Operations | ||||||||||||||||||||
Amphenol Industrial Operations | ||||||||||||||||||||
Amphenol Industrial Operations | ||||||||||||||||||||
Amphenol Industrial Operations | Neoprene | 20-4 | Marine Military | Aluminum Alloy | Metal | Unshielded | 4 | Flange | Military | Olive Drab | Receptacle Female Sockets | MIL-DTL-26482 Series I | -55 °C | 125 °C | Environment Resistant | Copper Alloy | N | Potted | Olive Drab Cadmium | Silver |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 47.96 | |
| 10 | $ 44.01 | |||
| 25 | $ 42.31 | |||
| 50 | $ 40.90 | |||
| 100 | $ 38.65 | |||
| 250 | $ 37.52 | |||
Description
General part information
MS3103-20 Series
4 Position Circular Connector Receptacle, Female Sockets Solder Cup
