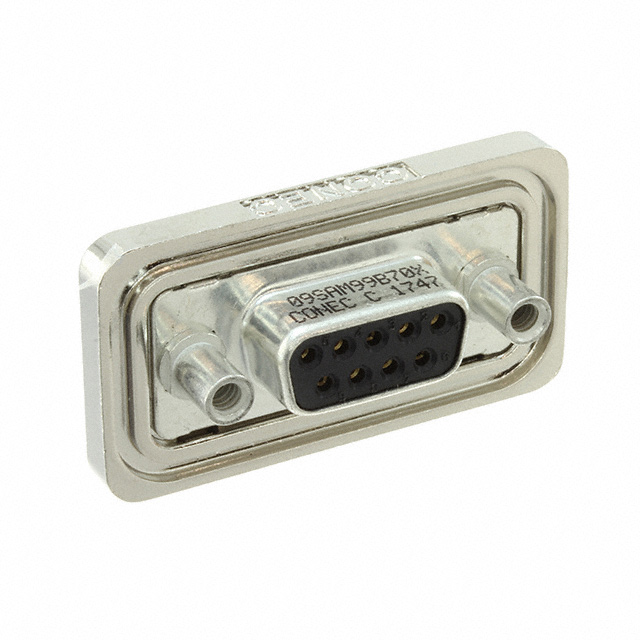

6STD09SAM99B70X

Active

Amphenol CONEC

CONN D-SUB RCPT 9POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6STD09SAM99B70X

Active

Amphenol CONEC

CONN D-SUB RCPT 9POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6STD09SAM99B70X

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Mounting Hardware
Flange Feature	4-40
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Tin Plated, Copper Alloy
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Voltage Rating	125 VDC
Wire Gauge	20 AWG

6STD09S Series

Part	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Material, Finish	Flange Feature	Connector Type	Contact Finish	Color	Ingress Protection	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Contact Type	Dielectric Material	Mounting Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Current Rating (Amps)	Voltage Rating	Contact Material	Material Flammability Rating	Wire Gauge	Contact Finish Thickness	Backset Spacing	Backset Spacing	Features
Amphenol CONEC 6STD09SCR99E20X	DE E	1	Copper Alloy Tin Plated	Female Screwlock (4-40) Mating Side	Receptacle Female Sockets	Gold	Black	IP67 - Dust Tight Waterproof	2	0.76 Ám	30 Áin	D-Sub	Signal	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	Solder	-25 °C	105 ░C	9
Amphenol CONEC 6STD09SAM99B30X	DE E	1	Copper Alloy Tin Plated	Female Screwlock (4-40) Mating Side	Receptacle Female Sockets	Gold	Black	IP67 - Dust Tight Waterproof	2	0.203 çm	8 çin	D-Sub	Signal	Polybutylene Terephthalate (PBT) Glass Filled	Free Hanging (In-Line)		-25 °C	105 ░C	9	7.5 A	125 VDC	Copper Alloy	UL94 V-0	20 AWG
Amphenol CONEC 6STD09SAR99B30X	DE E	1	Copper Alloy Tin Plated	Female Screwlock (4-40) Mating Side	Receptacle Female Sockets	Gold	Black	IP67 - Dust Tight Waterproof	2			D-Sub	Signal	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Through Hole	Solder	-25 °C	105 ░C	9	7.5 A	125 VDC	Copper Alloy	UL94 V-0		Flash
Amphenol CONEC 6STD09SAR99E20X	DE E	1	Copper Alloy Tin Plated	Female Screwlock (4-40) Mating Side	Receptacle Female Sockets	Gold	Black	IP67 - Dust Tight Waterproof	2			D-Sub	Signal	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Through Hole	Solder	-25 °C	105 ░C	9	7.5 A	125 VDC	Copper Alloy	UL94 V-0		Flash
Amphenol CONEC 6STD09SCT99S40X	DE E	1	Copper Alloy Tin Plated	Female Screwlock (4-40) Mating Side	Receptacle Female Sockets	Gold	Black	IP67 - Dust Tight Waterproof	2	0.76 Ám	30 Áin	D-Sub	Signal	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Right Angle Through Hole	Solder	-25 °C	105 ░C	9	5 A		Copper Alloy	UL94 V-0			4.8 mm	0.189 in	Board Lock Mounting Brackets
Amphenol CONEC 6STD09SAU99R40X	DE E	1	Copper Alloy Tin Plated	Female Screwlock (4-40) Mating Side	Receptacle Female Sockets	Gold	Black	IP67 - Dust Tight Waterproof	2			D-Sub	Signal	Polybutylene Terephthalate (PBT) Glass Filled	Board Edge Right Angle Through Hole	Solder	-25 °C	105 ░C	9	7.5 A	125 VDC	Copper Alloy	UL94 V-0		Flash	7 mm	0.276 in	Board Lock Mounting Brackets
Amphenol CONEC 6STD09SAM99B20X	DE E	1	Copper Alloy Tin Plated	Female Screwlock (M3) Mating Side	Receptacle Female Sockets	Gold	Black	IP67 - Dust Tight Waterproof	2			D-Sub	Signal	Polybutylene Terephthalate (PBT) Glass Filled			-25 °C	105 ░C	9	7.5 A	125 VDC	Copper Alloy	UL94 V-0	20 AWG	Flash
Amphenol CONEC 6STD09SAM99B70X	DE E	1	Copper Alloy Tin Plated	4-40	Receptacle Female Sockets	Gold	Black	IP67 - Dust Tight Waterproof	2			D-Sub	Signal	Polybutylene Terephthalate (PBT) Glass Filled			-25 °C	105 ░C	9	7.5 A	125 VDC	Copper Alloy	UL94 V-0	20 AWG	Flash			Mounting Hardware

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 33.86
		10	$ 26.16
		25	$ 23.71
		50	$ 22.05
		100	$ 20.56
		250	$ 18.79
		500	$ 17.60

Description

General part information

6STD09S Series

9 Position D-Sub Receptacle, Female Sockets Connector
