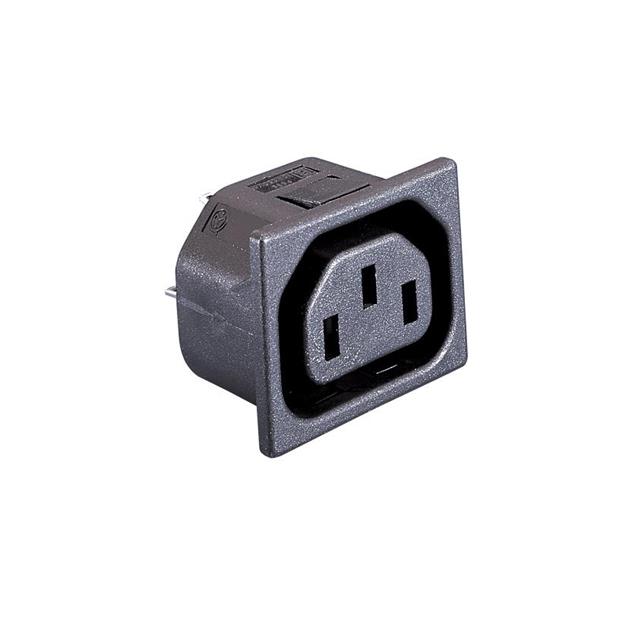

PX0695/20/28

Active

BULGIN LIMITED

PWR ENT RCPT IEC320-2-2F PANEL

Search across all available documentation for this part.

Active

BULGIN LIMITED

PWR ENT RCPT IEC320-2-2F PANEL

Technical Specifications

Parameters and characteristics for this part

Specification	PX0695/20/28

Accomodates a Fuse	False
Approval Agency	VDE, CSA, UL, ENEC
Connector Style	IEC 320-2-2/F
Connector Type	Receptacle, Female Sockets
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	32.26 mm
Panel Cutout Dimensions [y]	24.77 mm
Panel Thickness	2 mm
Panel Thickness	0.079 in
Termination	Solder
Voltage Rating - Appliance Inlet	250 VAC

Part	Voltage Rating - Appliance Inlet	Current Rating - Appliance Inlet	Panel Thickness	Panel Thickness	Connector Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Filter Type	Approval Agency	Termination	Material Flammability Rating	Mounting Type	Connector Type	Panel Thickness [custom]	Panel Thickness [custom]
BULGIN LIMITED PX0695/30/PC	250 VAC	10 A	3 mm	0.118 in	IEC 320-2-2/F	24.77 mm	32.26 mm	Unfiltered - Commercial	CSA ENEC UL VDE	Solder	UL94 V-0	Panel Mount Snap-In Through Hole Right Angle	Receptacle Female Sockets
BULGIN LIMITED PX0695/15/PC	250 VAC	10 A			IEC 320-2-2/F	24.77 mm	32.26 mm	Unfiltered - Commercial	CSA ENEC UL VDE	Solder	UL94 V-0	Panel Mount Snap-In Through Hole Right Angle	Receptacle Female Sockets	0.059 in	1.5 mm
BULGIN LIMITED PX0695/10/28	250 VAC	10 A	1 mm	0.039 in	IEC 320-2-2/F	24.77 mm	32.26 mm	Unfiltered - Commercial	CSA ENEC UL VDE	Solder	UL94 V-0	Panel Mount Snap-In	Receptacle Female Sockets
BULGIN LIMITED PX0695/20/28	250 VAC	10 A	2 mm	0.079 in	IEC 320-2-2/F	24.77 mm	32.26 mm	Unfiltered - Commercial	CSA ENEC UL VDE	Solder	UL94 V-0	Panel Mount Snap-In	Receptacle Female Sockets
BULGIN LIMITED PX0695/15/28	250 VAC	10 A			IEC 320-2-2/F	24.77 mm	32.26 mm	Unfiltered - Commercial	CSA ENEC UL VDE	Solder	UL94 V-0	Panel Mount Snap-In	Receptacle Female Sockets	0.059 in	1.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 3.45

General part information

Power Entry Connector Receptacle, Female Sockets IEC 320-2-2/F Panel Mount, Snap-In
