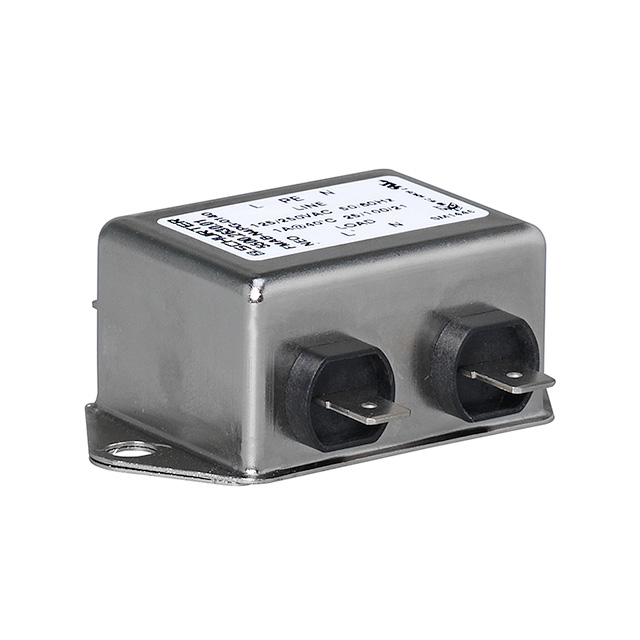

5500.2630.01
ActiveSCHURTER Inc.
LINE FILTER 125V/250VAC 1A CHAS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5500.2630.01
ActiveSCHURTER Inc.
LINE FILTER 125V/250VAC 1A CHAS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5500.2630.01 |
|---|---|
| Applications | General Purpose |
| Approval Agency | cURus, VDE, ENEC |
| Configuration | Single Stage |
| Current | 1 A |
| Filter Type | Single Phase |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Termination Style | Quick Connect |
| Voltage - Rated AC | 125 V, 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 12.43 | |
| 50 | $ 10.57 | |||
| 100 | $ 9.40 | |||
| 500 | $ 9.14 | |||
Description
General part information
5500.2630 Series
Single Phase EMC/EMI Line Filter 1 A 125V, 250V 50/60Hz Single Stage Quick Connect
