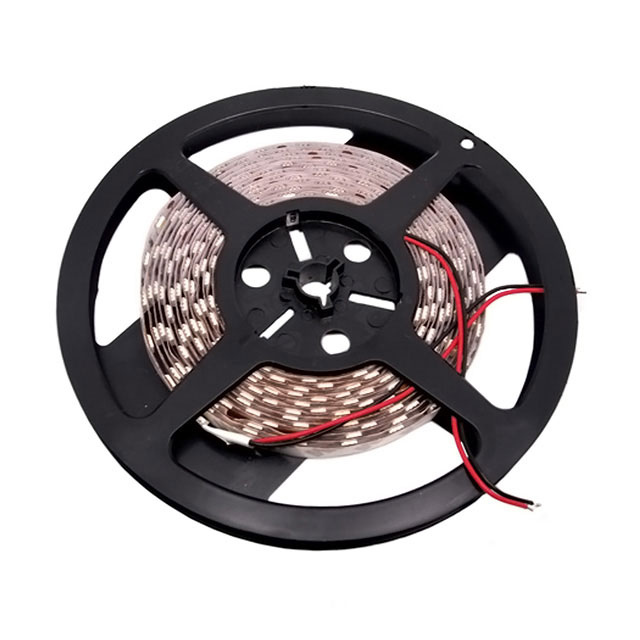

104990029

Obsolete

Seeed Technology Co., Ltd

LED MOD RED LINEAR STRIP

Search across all available documentation for this part.

Obsolete

Seeed Technology Co., Ltd

LED MOD RED LINEAR STRIP

Technical Specifications

Parameters and characteristics for this part

Part	Color	Configuration	Type	Size / Dimension [x]	Size / Dimension [y]	Lens Type	Height [z]	Current - Max [Max]	Features	Voltage - Forward (Vf) (Typ)	Wavelength	Lumens/Watt @ Current - Test	Viewing Angle	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]
Seeed Technology Co., Ltd 104990030	Red	Flexible Linear Light Strip	LED Module	5000 mm	10 mm	Flat	3.2 mm	1.2 A	IP65	12 V
Seeed Technology Co., Ltd 104990037	Green	Flexible Linear Light Strip	LED Module	5000 mm	10 mm	Flat	2 mm	1.2 A		12 V
Seeed Technology Co., Ltd 104990074	Blue Green Red					Domed				2.2 V 3.4 V 3.4 V	463 nm 523 nm 623 nm	11 lm/W 46 lm/W 56 lm/W	140 °	43 lm	13 lm	55 lm
Seeed Technology Co., Ltd 104990031	Blue Green Red	Flexible Linear Light Strip	LED Module	5000 mm	10 mm	Flat	2 mm	1.2 A		12 V
Seeed Technology Co., Ltd 104990033	Yellow	Flexible Linear Light Strip	LED Module	5000 mm	10 mm	Flat	2 mm	1.2 A		12 V
Seeed Technology Co., Ltd 104990043	Green	Flexible Linear Light Strip	LED Module	5000 mm	10 mm	Flat	3.2 mm	1.2 A	IP65	12 V
Seeed Technology Co., Ltd 104990029	Red	Flexible Linear Light Strip	LED Module	5000 mm	10 mm	Flat	2 mm	1.2 A		12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module - Red Linear Light Strip, Flexible

Technical documentation and resources

No documents available
