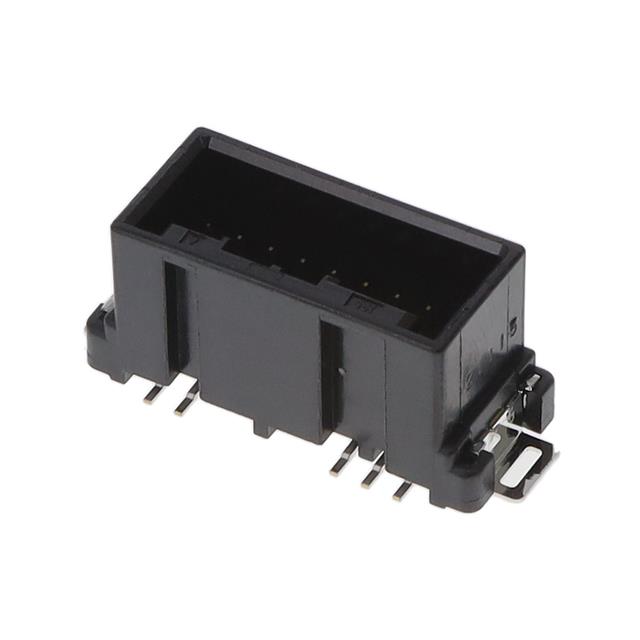

GT8EH-14DP-2V(56)

Active

Hirose Electric USA, Inc.

CONN HEADER SMD 14POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GT8EH-14DP-2V(56)

Active

Hirose Electric USA, Inc.

CONN HEADER SMD 14POS 2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GT8EH-14DP-2V(56)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Solder Retention
Insulation Color	Black
Insulation Height	11.94 mm
Insulation Height	0.47 in
Insulation Material	Polyphenylene Sulfide (PPS)
Mounting Type	Surface Mount
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

GT8EH Series

Part	Termination	Connector Type	Insulation Height	Insulation Height	Contact Type	Insulation Color	Number of Positions	Insulation Material	Shrouding	Fastening Type	Mated Stacking Heights	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions Loaded	Mounting Type	Contact Material	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Features	Number of Rows	Style	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Voltage Rating
Hirose Electric USA, Inc. GT8EH-24DP-2V(16)	Solder	Header	11.94 mm	0.47 in	Male Pin	Black	24	Polyphenylene Sulfide (PPS)	Shrouded - 4 Wall	Latch Holder	13.35 mm	0.079 in	2 mm	All	Surface Mount	Brass	UL94 V-0	0.079 in	2 mm	Square	Solder Retention	2	Board to Cable/Wire
Hirose Electric USA, Inc. GT8EH-14DP-2V(01)	Solder	Header	11.94 mm	0.47 in	Male Pin	Black	14	Polyphenylene Sulfide (PPS)	Shrouded - 4 Wall	Latch Holder	13.35 mm	0.079 in	2 mm	All	Surface Mount	Brass	UL94 V-0	0.079 in	2 mm	Square	Solder Retention	2	Board to Cable/Wire
Hirose Electric USA, Inc. GT8EH-12DP-2V(16)
Hirose Electric USA, Inc. GT8EH-12DP-2V(15)	Solder	Header	11.94 mm	0.47 in	Male Pin	Black	12	Polyphenylene Sulfide (PPS)	Shrouded - 4 Wall	Latch Holder	13.35 mm	0.079 in	2 mm	All	Surface Mount	Brass	UL94 V-0	0.079 in	2 mm	Square	Solder Retention	2	Board to Cable/Wire
Hirose Electric USA, Inc. GT8EH-3P-2V	Solder	Header	11.94 mm	0.47 in	Male Pin	Black		Polyphenylene Sulfide (PPS)	Shrouded - 4 Wall	Latch Holder	13.35 mm	0.079 in	2 mm	All	Surface Mount	Brass				Square	Pick and Place Solder Retention	1	Board to Cable/Wire	Tin
Hirose Electric USA, Inc. GT8EH-14DP-2V(56)	Solder	Header	11.94 mm	0.47 in	Male Pin	Black	14	Polyphenylene Sulfide (PPS)	Shrouded - 4 Wall	Latch Holder		0.079 in	2 mm	All	Surface Mount	Brass		0.079 in	2 mm	Square	Solder Retention	2	Board to Cable/Wire	Tin	-40 °C	105 ░C	Gold	250 VAC
