C1206.38.01

Active

Prysmian Group

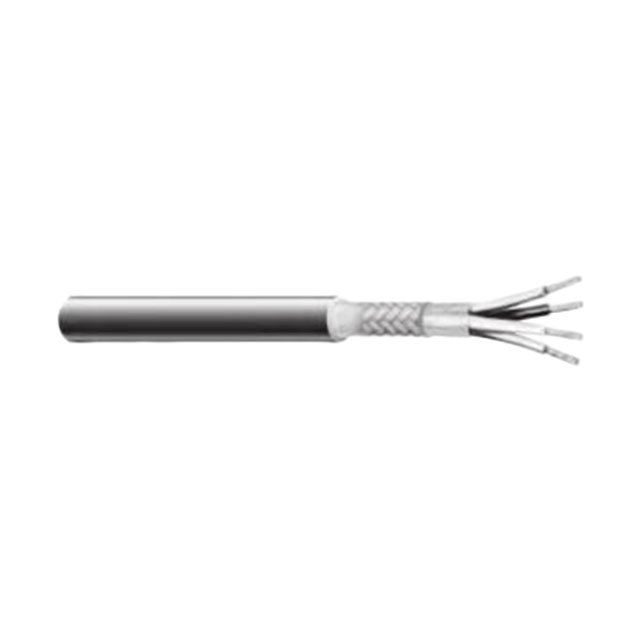

CABLE 6COND 18AWG BLK SHLD 500'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 6COND 18AWG BLK SHLD 500'

Technical Specifications

Parameters and characteristics for this part

Specification	C1206.38.01

Cable Type	Multi-Conductor
Conductor Insulation	Rubber
Conductor Material	Copper, Tinned
Conductor Strand [custom]	41 strands
Conductor Strand [custom]	34 AWG
Jacket (Insulation) Diameter [diameter]	0.37 in
Jacket (Insulation) Diameter [diameter]	9.4 mm
Jacket (Insulation) Material	Carolprene
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Black
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	6
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Control, Communication
Voltage	300 V
Wire Gauge	18 AWG

Part	Jacket (Insulation) Material	Wire Gauge	Shield Coverage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Shield Type	Cable Type	Length	Length [x]	Number of Conductors	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Shield Material	Length	Usage	Voltage
Prysmian Group C1206.41.01	Carolprene	18 AWG	80 %	41 strands	34 AWG	0.889 mm	0.035 in	Copper Tinned	Braid	Multi-Conductor	15.24 m 304.8 m	50 ft 100 ft	6	Rubber	-25 °C	60 °C	30.5 m	0.37 in	9.4 mm	Black	Copper Tinned	1000 ft	Communication Control	300 V
Prysmian Group C1206.38.01	Carolprene	18 AWG		41 strands	34 AWG	0.889 mm	0.035 in	Copper Tinned	Braid	Multi-Conductor		500 '	6	Rubber	-20 C	60 °C	152.4 m	0.37 in	9.4 mm	Black	Copper Tinned		Communication Control	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25000	$ 1.87

General part information

6 Conductor Multi-Conductor Cable Black 18 AWG Braid 500.0' (152.4m)
