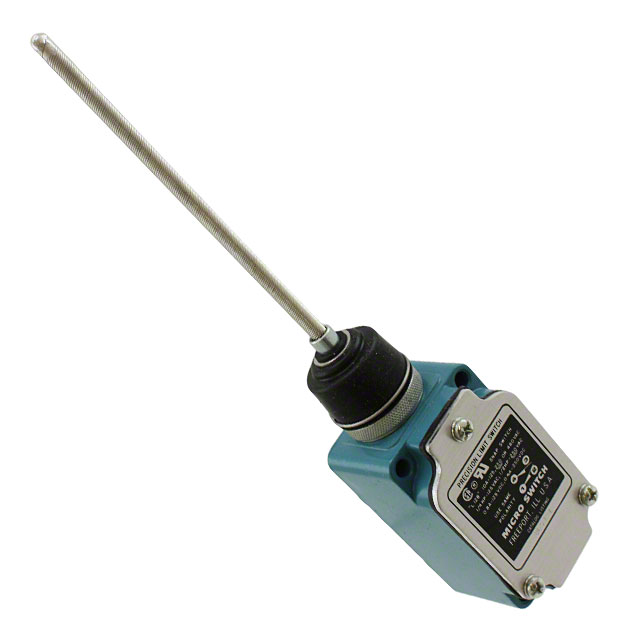

8LS1-L
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8LS1-L
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 10A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8LS1-L |
|---|---|
| Actuator Type | Flexible Cable |
| Circuit | SPDT (DB/DM) |
| Current Rating (Amps) | 10 A, 800 mA |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Chassis Mount |
| Operating Force | 141 gf |
| Operating Position | 1.125 in |
| Operating Position | 28.6 mm |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -29 °C |
| Pretravel | 28.6 mm |
| Pretravel | 1.125 in |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 324.13 | |
Description
General part information
8LS1 Series
Switch SPDT (DB/DM) Chassis Mount
