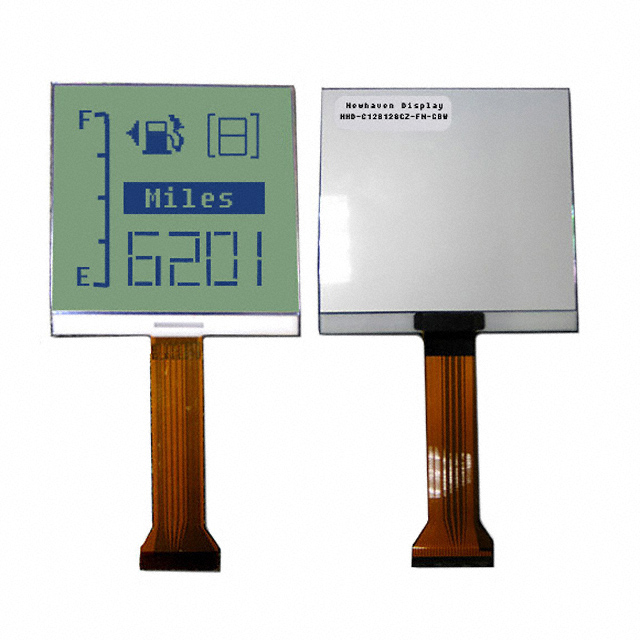

NHD-C128128CZ-FN-GBW

Obsolete

Newhaven Display Intl

LCD MOD GRAPH 128X128 TRANSFL

Search across all available documentation for this part.

Obsolete

Newhaven Display Intl

LCD MOD GRAPH 128X128 TRANSFL

Technical Specifications

Parameters and characteristics for this part

Part	Dot Size [x]	Dot Size [y]	Viewing Area [z]	Viewing Area [y]	Controller Type	Dot Pixels [x]	Dot Pixels [y]	Display Mode	Background Color	Dot Pitch [y]	Dot Pitch [x]	Display Type	Backlight	Interface	Graphics Color	Viewing Area [x]
Newhaven Display Intl NHD-C128128BZ-FSW-GBW	0.42 mm	0.42 mm	60.51 mm	65.5 mm	ST-7528	128	128	Transflective	Gray	0.44 mm	0.44 mm	STN - Super-Twisted Nematic	LED - White	Parallel 8-Bit	Blue
Newhaven Display Intl NHD-C128128CZ-FN-GBW	0.5 mm	0.5 mm		73 mm		128	128	Transflective		0.55 mm	0.55 mm	STN - Super-Twisted Nematic	Without Backlight	Parallel 8-Bit	Gray	73 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Graphic LCD Display Module Transflective Gray STN - Super-Twisted Nematic Parallel, 8-Bit 128 x 128
