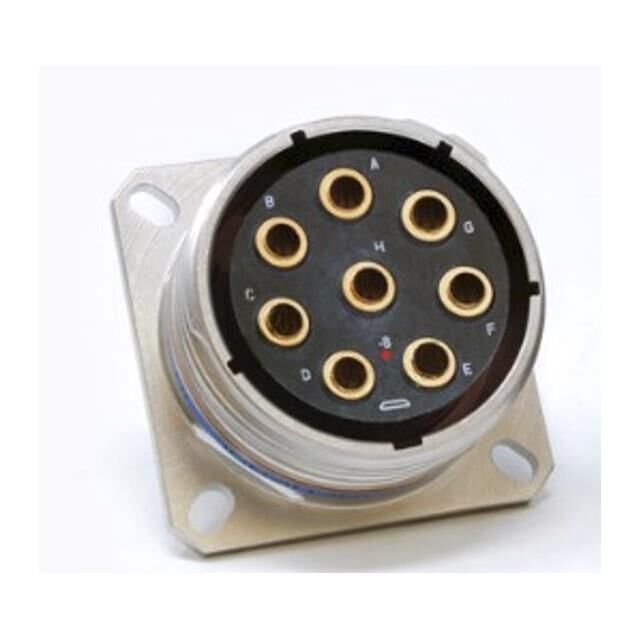

D38999/20LB98SNL

Active

Corsair

D38999 SER III RECEPTACLE

Search across all available documentation for this part.

Active

Corsair

D38999 SER III RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/20LB98SNL

Connector Type	Receptacle Housing
Contact Type	Crimp
Housing Color	Silver
Includes	1 pc - 1 Insert Shell
Ingress Protection	Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	6
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Shell Size, MIL	B
Type	For Female Sockets

Part	Applications	Shell Size, MIL	Shielding	Mounting Feature	Shell Size - Insert	Orientation	Termination	Number of Positions	Connector Type	Contact Finish - Mating	Contact Type	Primary Material	Housing Color	Insert Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Includes	Note	Type
Corsair D38999/20LB2PNL
Corsair D38999/20LB2HN	Aviation Marine Military	B	Unshielded	Flange	11-2	N	Crimp	2	Male Pins Receptacle	Gold
Corsair D38999/20LB98SNL		B		Flange		N		6	Receptacle Housing		Crimp	Metal	Silver	Thermoplastic	UL94 V-0	-65 ░C	200 °C	Waterproof	1 pc - 1 Insert Shell	Contacts Not Included	For Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle Housing Panel Mount
