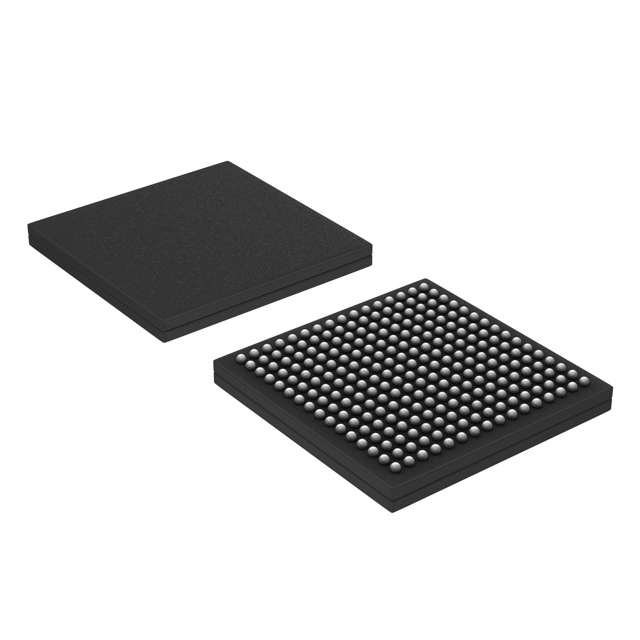

MCF5233CVM100

Obsolete

Motorola

IC MCU 32BIT ROMLESS 256MAPBGA

Search across all available documentation for this part.

Obsolete

Motorola

IC MCU 32BIT ROMLESS 256MAPBGA

Technical Specifications

Parameters and characteristics for this part

Specification	MCF5233CVM100

Connectivity	I2C, SPI, EBI/EMI, CANbus, UART/USART
Core Processor	ColdFire V2
Core Size	32-Bit Single-Core
Mounting Type	Surface Mount
Number of I/O	61
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	External
Package / Case	256-LBGA
Peripherals	DMA, WDT
Program Memory Type	ROMless
RAM Size	64 K
Speed	100 MHz
Supplier Device Package	256-MAPBGA (17x17)
Voltage - Supply (Vcc/Vdd) [Max]	1.6 V
Voltage - Supply (Vcc/Vdd) [Min]	1.4 V

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Oscillator Type	RAM Size	Core Size	Program Memory Type	Speed	Peripherals	Connectivity	Package / Case	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Mounting Type	Core Processor	Number of I/O
Motorola MCF5233CVM100	256-MAPBGA (17x17)	85 °C	-40 °C	External	64 K	32-Bit Single-Core	ROMless	100 MHz	DMA WDT	CANbus EBI/EMI I2C SPI UART/USART	256-LBGA	1.4 V	1.6 V	Surface Mount	ColdFire V2	61

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	9	$ 36.98

General part information

Coldfire V2 MCF523x Microcontroller IC 32-Bit Single-Core 100MHz ROMless 256-MAPBGA (17x17)

Technical documentation and resources

No documents available
