MMCX-6005

Obsolete

Harwin Inc.

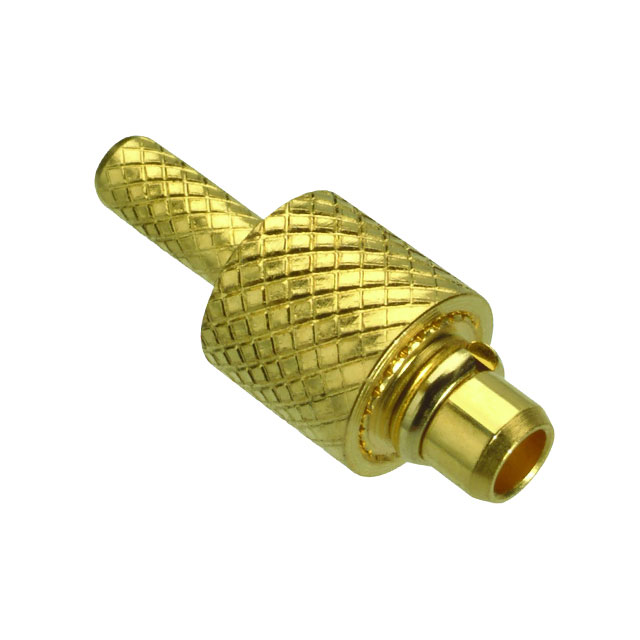

CONN MMCX PLUG STR 50 OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

MMCX-6005

Obsolete

Harwin Inc.

CONN MMCX PLUG STR 50 OHM CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MMCX-6005

Body Finish	Gold
Body Material	Brass
Cable Group	196
Cable Group	RG-178
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	170 V

- Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Dielectric Material	Housing Color	Connector Style	Frequency - Max [Max]	Cable Group	Cable Group	Connector Type	Body Finish	Shield Termination	Insertion Loss	Impedance	Fastening Type	Center Contact Plating	Voltage Rating	Number of Ports	Center Contact Material	Body Material	Mounting Type	Mating Cycles
Harwin Inc. MMCX-5005	-65 ░C	165 °C	Crimp	Polytetrafluoroethylene (PTFE)	Gold	MMCX	6000 MHz	196	RG-178	Female Socket Jack	Gold	Crimp	0.2 dB	50 Ohms	Snap-On	Gold	170 V	1	Beryllium Copper	Brass	Free Hanging (In-Line)	500
Harwin Inc. UMCP-8020005	-40 °C	90 °C	Crimp	Polybutylene Terephthalate (PBT) Glass Filled	Silver	U.FL (UMCC)	6000 MHz			Male Pin Plug	Silver	Crimp			Snap-On	Gold		1	Phosphor Bronze	Phosphor Bronze	Free Hanging (In-Line) Right Angle
Harwin Inc. MMCX-6105	-65 ░C	165 °C	Crimp	Polytetrafluoroethylene (PTFE)	Gold	MMCX	6000 MHz		188 316 RG-174	Male Pin Plug	Gold	Crimp	0.2 dB	50 Ohms	Snap-On	Gold	170 V	1	Brass	Brass	Free Hanging (In-Line)	500
Harwin Inc. MMCX-6505	-65 ░C	165 °C	Solder	Polytetrafluoroethylene (PTFE)	Gold	MMCX	6000 MHz	196	RG-178	Male Pin Plug	Gold	Crimp	0.3 dB	50 Ohms	Snap-On	Gold	170 V	1	Brass	Brass	Free Hanging (In-Line) Right Angle	500
Harwin Inc. MMCX-6605	-65 ░C	165 °C	Solder	Polytetrafluoroethylene (PTFE)	Gold	MMCX	6000 MHz		188 316 RG-174	Male Pin Plug	Gold	Crimp	0.3 dB	50 Ohms	Snap-On	Gold	170 V	1	Brass	Brass	Free Hanging (In-Line) Right Angle	500
Harwin Inc. MMCX-6005	-65 ░C	165 °C	Crimp	Polytetrafluoroethylene (PTFE)	Gold	MMCX	6000 MHz	196	RG-178	Male Pin Plug	Gold	Crimp	0.2 dB	50 Ohms	Snap-On	Gold	170 V	1	Brass	Brass	Free Hanging (In-Line)	500

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

- Series

MMCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
