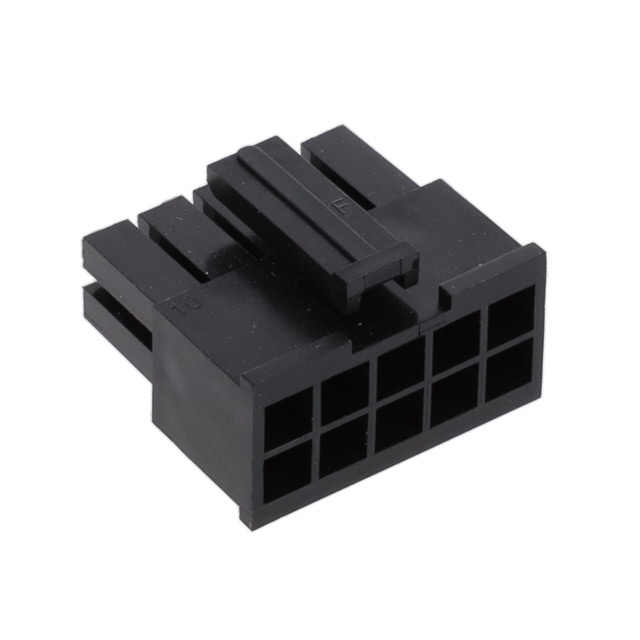

DMT-2A-10

Active

Adam Tech

CONN RCPT HSG 10POS 3.00MM

Search across all available documentation for this part.

Active

Adam Tech

CONN RCPT HSG 10POS 3.00MM

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Color	Fastening Type	Insulation Material	Mounting Type	Contact Termination	Contact Type	Connector Type	Row Spacing [x]	Row Spacing [x]	Number of Rows	Pitch [x]	Pitch [x]	Note	Number of Positions
Adam Tech DMT-2A-12	120 °C	-25 °C	12	Black	Latch Lock	Polyamide (PA66) Nylon 6/6	Free Hanging (In-Line)	Crimp	Female Socket	Receptacle	0.118 in	3 mm	2	3 mm	0.118 in	Contacts Not Included
Adam Tech DMT-2A-16	120 °C	-25 °C		Black	Latch Lock	Polyamide (PA66) Nylon 6/6	Free Hanging (In-Line)	Crimp	Female Socket	Receptacle	0.118 in	3 mm	2	3 mm	0.118 in	Contacts Not Included	16
Adam Tech DMT-2A-04	120 °C	-25 °C	4	Black	Latch Lock	Polyamide (PA66) Nylon 6/6	Free Hanging (In-Line)	Crimp	Female Socket	Receptacle	0.118 in	3 mm	2	3 mm	0.118 in	Contacts Not Included
Adam Tech DMT-2A-08	120 °C	-25 °C	8	Black	Latch Lock	Polyamide (PA66) Nylon 6/6	Free Hanging (In-Line)	Crimp	Female Socket	Receptacle	0.118 in	3 mm	2	3 mm	0.118 in	Contacts Not Included
Adam Tech DMT-2A-24	120 °C	-25 °C	24	Black	Latch Lock	Polyamide (PA66) Nylon 6/6	Free Hanging (In-Line)	Crimp	Female Socket	Receptacle	0.118 in	3 mm	2	3 mm	0.118 in	Contacts Not Included
Adam Tech DMT-2A-14	120 °C	-25 °C	14	Black	Latch Lock	Polyamide (PA66) Nylon 6/6	Free Hanging (In-Line)	Crimp	Female Socket	Receptacle	0.118 in	3 mm	2	3 mm	0.118 in	Contacts Not Included
Adam Tech DMT-2A-10	120 °C	-25 °C	10	Black	Latch Lock	Polyamide (PA66) Nylon 6/6	Free Hanging (In-Line)	Crimp	Female Socket	Receptacle	0.118 in	3 mm	2	3 mm	0.118 in	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
