DS2176

Obsolete

Analog Devices Inc./Maxim Integrated

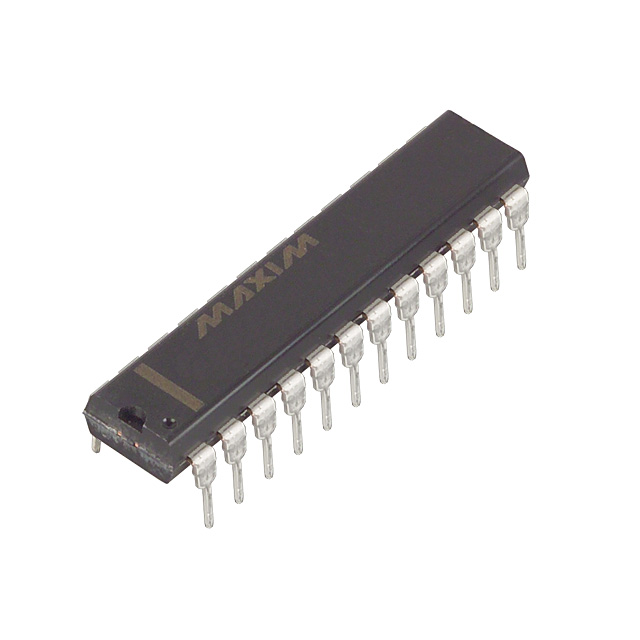

IC TELECOM INTERFACE 24DIP

Search across all available documentation for this part.

Obsolete

Analog Devices Inc./Maxim Integrated

IC TELECOM INTERFACE 24DIP

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Package / Case	Function	Current - Supply	Number of Circuits	Operating Temperature [Max]	Interface	Mounting Type	Package / Case	Package / Case
Analog Devices Inc./Maxim Integrated DS2176QN	28-PLCC (11.51x11.51)	28-LCC (J-Lead)	Receive Buffer	5 mA	1	70 °C	TDM	Surface Mount
Analog Devices Inc./Maxim Integrated DS2176Q+	28-PLCC (11.51x11.51)	28-LCC (J-Lead)	Receive Buffer	5 mA	1	70 °C	TDM	Surface Mount
Analog Devices Inc./Maxim Integrated DS2176Q	28-PLCC (11.51x11.51)	28-LCC (J-Lead)	Receive Buffer	5 mA	1	70 °C	TDM	Surface Mount
Analog Devices Inc./Maxim Integrated DS2176Q/T&R	28-PLCC (11.51x11.51)	28-LCC (J-Lead)	Receive Buffer	5 mA	1	70 °C	TDM	Surface Mount
Analog Devices Inc./Maxim Integrated DS2176	24-PDIP	24-DIP	Receive Buffer	5 mA	1	70 °C	TDM	Through Hole	0.3 in	7.62 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	19	$ 16.52

General part information

Telecom IC Receive Buffer 24-PDIP
