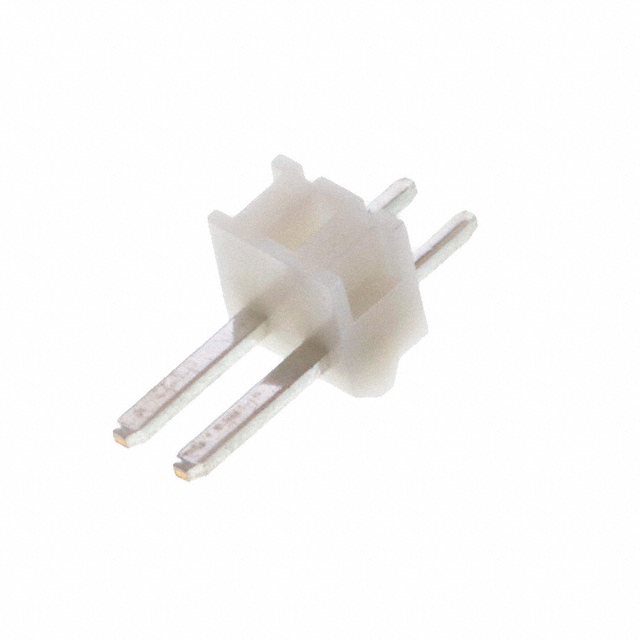

B2P-SHF-1AA

Active

JST Sales America Inc.

CONN HEADER VERT 2POS 2.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 2POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	B2P-SHF-1AA

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	6 mm
Contact Length - Mating	0.236 in
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Insulation Color	Natural
Insulation Height	3.2 mm
Insulation Height	0.126 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Mated Stacking Heights	14.9 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Overall Contact Length	0.496 in
Overall Contact Length	12.6 mm
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Unshrouded
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Insulation Material	Material Flammability Rating	Connector Type	Insulation Color	Fastening Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Mated Stacking Heights	Number of Positions Loaded	Style	Shrouding	Voltage Rating	Contact Shape	Termination	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Contact Material	Contact Finish - Post	Contact Type
JST Sales America Inc. B2P-SHF-1AA	3.2 mm	0.126 in	3 A	6 mm	0.236 in	Polyamide (PA66) Nylon 6/6	UL94 V-0	Header	Natural	Friction Lock	1	-25 °C	85 °C	Through Hole	0.134 in	3.4 mm	2	14.9 mm	All	Board to Cable/Wire	Unshrouded	250 VDC	Square	Solder	0.496 in	12.6 mm	2.5 mm	0.098 in	Brass	Tin	Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 2 position 0.098" (2.50mm)
