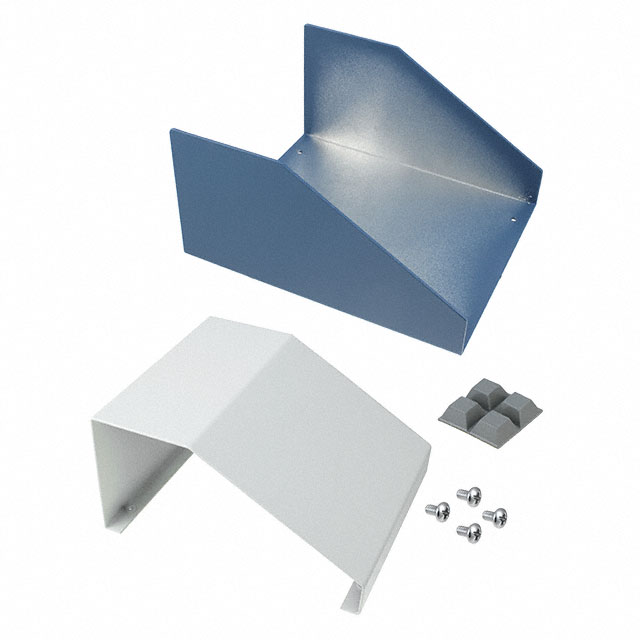

UNC 3 1/2-6-7-BLUE/WHITE

Active

LMB Heeger Inc.

CABINET ALUM BLU/WHT 7"L X 6"W

Search across all available documentation for this part.

Active

LMB Heeger Inc.

CABINET ALUM BLU/WHT 7"L X 6"W

Technical Specifications

Parameters and characteristics for this part

Specification	UNC 3 1/2-6-7-BLUE/WHITE

Area (L x W)	42 in˛
Area (L x W)	271 cm˛
Color	Blue, White
Container Type	Cabinet
Design	Slanted Top
Features	Separate Panel or Cover Thickness
Height [z]	88.9 mm
Height [z]	3.5 in
Material	Metal, Aluminum
Size / Dimension [x]	7 "
Size / Dimension [x]	177.8 mm
Size / Dimension [y]	152.4 mm
Size / Dimension [y]	6 "
Thickness	0.09 in
Thickness	2.29 mm

Part	Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Container Type	Height [z]	Height [z]	Color	Thickness	Thickness	Design	Area (L x W)	Area (L x W)	Features	Size / Dimension [y]
LMB Heeger Inc. UNC 3-7-5-BLUE/WHITE	Aluminum Metal	177.8 mm	5 "	7 "	127 mm	Cabinet	76.2 mm	3 in	Blue White	0.09 in	2.29 mm	Slanted Top	35 in²	226 cm˛	Separate Panel or Cover Thickness
LMB Heeger Inc. UNC 3 1/2-6-7-BLUE/WHITE	Aluminum Metal	177.8 mm	6 "	7 "		Cabinet	88.9 mm	3.5 in	Blue White	0.09 in	2.29 mm	Slanted Top	42 in˛	271 cm˛	Separate Panel or Cover Thickness	152.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cabinet Metal, Aluminum Blue, White Slanted Top 7.000" L x 6.000" W (177.80mm x 152.40mm) X 3.500" (88.90mm)
