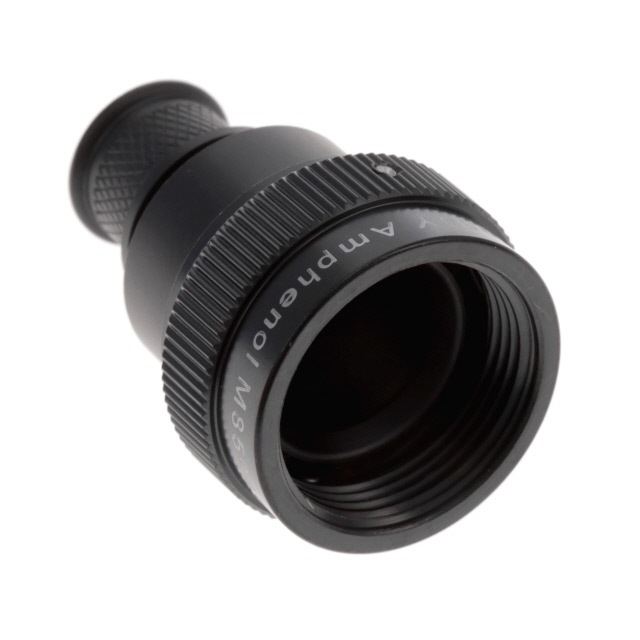

M85049/82-14Z02

Active

AMPHENOL PCD

CONN BACKSH BANDING SZ12 14 BLK

Search across all available documentation for this part.

Active

AMPHENOL PCD

CONN BACKSH BANDING SZ12 14 BLK

Technical Specifications

Parameters and characteristics for this part

Specification	M85049/82-14Z02

Cable Exit	180 °
Cable Opening [diameter]	11.43 mm
Cable Opening [diameter]	0.45 in
Color	Black
Diameter - Outside [diameter]	1.26 in
Diameter - Outside [diameter]	32 mm
Features	Self Locking
For Use With/Related Products	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III
Material	Aluminum Alloy
Plating	Zinc Cobalt
Shell Size - Insert	12, 14
Shielding	Unshielded
Type	Banding, Backshell

Part	Diameter - Outside [diameter]	Diameter - Outside [diameter]	For Use With/Related Products	Cable Opening [custom]	Cable Opening [custom]	Features	Material	Type	Color	Shielding	Plating	Shell Size - Insert	Cable Exit	Cable Opening [x]	Cable Opening [x]	Cable Opening [diameter]	Cable Opening [diameter]	Shell Size - Insert
AMPHENOL PCD M85049/82-10Z03	25.65 mm	1.01 in	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III	8.13 mm	0.32 in	Self Locking	Aluminum Alloy	Backshell Banding	Black	Unshielded	Zinc Cobalt	10	180 °
AMPHENOL PCD M85049/82-20W03	41.53 mm	1.635 in	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III			Self Locking	Aluminum Alloy	Backshell Banding	Olive	Unshielded	Cadmium	20 37	180 °	0.82 in	20.83 mm
AMPHENOL PCD M85049/82-14Z02	32 mm	1.26 in	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III			Self Locking	Aluminum Alloy	Backshell Banding	Black	Unshielded	Zinc Cobalt		180 °			11.43 mm	0.45 in	12 14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black Connector Backshell, Banding 12, 14
