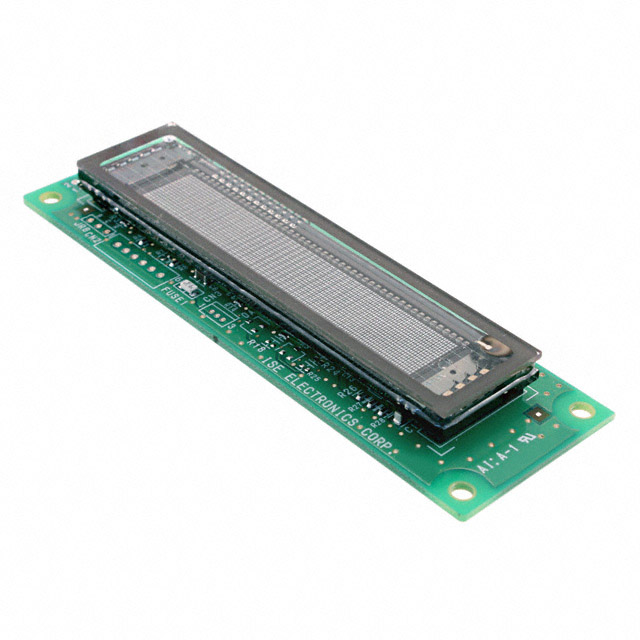

GU140X16G-7003

Active

Noritake U.S.A., Inc.

MODULE VF GRAPHIC DISPLAY 140X16

Search across all available documentation for this part.

Active

Noritake U.S.A., Inc.

MODULE VF GRAPHIC DISPLAY 140X16

Technical Specifications

Parameters and characteristics for this part

Part	Display Type	Format [x]	Format [y]	Outline L x W x H [x]	Outline L x W x H [y]	Outline L x W x H [z]	Interface	Display Format [x]	Display Format [y]	Viewing Area [x]	Viewing Area [y]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Dots [x]	Number of Dots [y]	Voltage - Supply [Min]	Voltage - Supply [Max]
Noritake U.S.A., Inc. GU140X16J-7000B	Graphic	5 Dots	7	146 mm	43 mm	9.4 mm	Parallel/Serial	20	2	102.75 mm	18.8 mm	85 °C	-40 °C	140	16
Noritake U.S.A., Inc. GU140X16G-7000B	Graphic	5 Dots	7	116 mm	37 mm	10.4 mm	Parallel/Serial	20	2	69.85 mm	11.45 mm	85 °C	-40 °C	140	16
Noritake U.S.A., Inc. GU140X16G-7003	Graphic	5 Dots	7	116 mm	37 mm	8.9 mm	Serial	20	2	69.9 mm	11.5 mm	85 °C	-40 °C	140	16	4.75 V	5.25 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Vacuum Fluorescent Display (VFD) 20 x 2 Graphic 4.75V ~ 5.25V Serial 116.00mm x 37.00mm x 8.90mm
