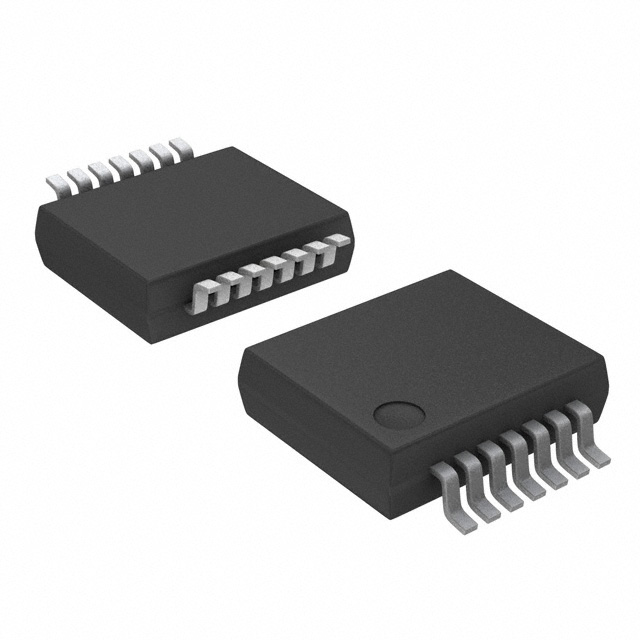

74ABT125DB,112

Obsolete

Freescale Semiconductor - NXP

IC BUFF NON-INVERT 5.5V 14SSOP

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

IC BUFF NON-INVERT 5.5V 14SSOP

Technical Specifications

Parameters and characteristics for this part

Specification	74ABT125DB,112

Current - Output High, Low [custom]	64 mA
Current - Output High, Low [custom]	32 mA
Logic Type	Buffer, Non-Inverting
Mounting Type	Surface Mount
Number of Bits per Element	1
Number of Elements	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	3-State
Package / Case	5.3 mm
Package / Case	14-SSOP
Package / Case	0.209 "
Supplier Device Package	14-SSOP
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Package / Case	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Number of Elements	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Logic Type	Supplier Device Package	Number of Bits per Element	Package / Case [custom]	Package / Case [custom]	Package / Case [x]	Package / Case [y]	Package / Case	Package / Case
Freescale Semiconductor - NXP 74ABT125BQ,115	14-VFQFN Exposed Pad	64 mA	32 mA	4	4.5 V	5.5 V	3-State	85 °C	-40 °C	Surface Mount	Buffer Non-Inverting	14-DHVQFN (2.5x3)	1
Freescale Semiconductor - NXP 74ABT125PW,112	14-TSSOP	64 mA	32 mA	4	4.5 V	5.5 V	3-State	85 °C	-40 °C	Surface Mount	Buffer Non-Inverting	14-TSSOP	1	0.173 "	4.4 mm
Freescale Semiconductor - NXP 74ABT125D,602	14-SOIC	64 mA	32 mA	4	4.5 V	5.5 V	3-State	85 °C	-40 °C	Surface Mount	Buffer Non-Inverting	14-SO	1			0.154 in	3.9 mm
Freescale Semiconductor - NXP 74ABT125PW,118	14-TSSOP	64 mA	32 mA	4	4.5 V	5.5 V	3-State	85 °C	-40 °C	Surface Mount	Buffer Non-Inverting	14-TSSOP	1	0.173 "	4.4 mm
Freescale Semiconductor - NXP 74ABT125DB,112	14-SSOP	64 mA	32 mA	4	4.5 V	5.5 V	3-State	85 °C	-40 °C	Surface Mount	Buffer Non-Inverting	14-SSOP	1					5.3 mm	0.209 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1025	$ 0.29

General part information

Buffer, Non-Inverting 4 Element 1 Bit per Element 3-State Output 14-SSOP
