PA18CAD04PAWS
ActiveCARLO GAVAZZI

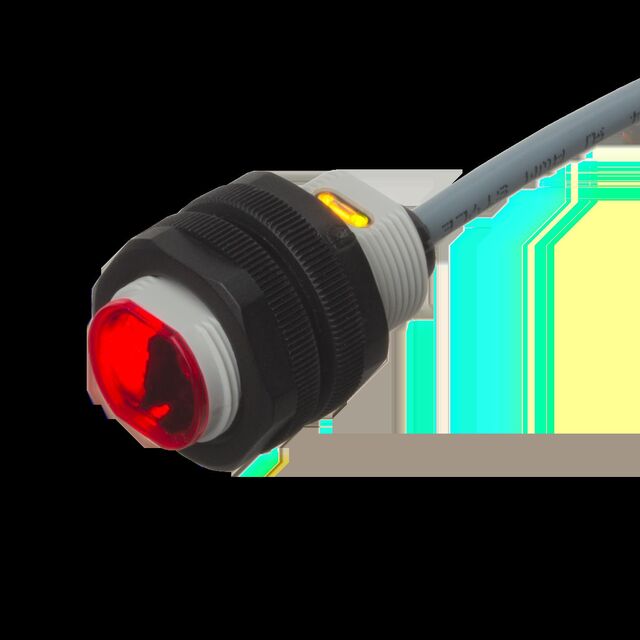

SENSOR REFLECTIVE 400MM PNP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PA18CAD04PAWS
ActiveCARLO GAVAZZI
SENSOR REFLECTIVE 400MM PNP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PA18CAD04PAWS |
|---|---|
| Cable Length | 78.74 in |
| Cable Length | 2 m |
| Connection Method | Cable |
| Ingress Protection | IP67, IP69K |
| Light Source | 625 nm |
| Light Source | Red |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Output Configuration | PNP |
| Response Time | 1 ms |
| Sensing Distance | 400 mm |
| Sensing Distance | 15.748 in |
| Sensing Method | Reflective |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 120.65 | |
| 5 | $ 114.62 | |||
| 10 | $ 111.00 | |||
| 25 | $ 107.38 | |||
Description
General part information
PA18CAD04 Series
Reflective Optical Sensor 15.748" (400mm) PNP
