WR9MA2000MICB-MFR6B

Active

GlobTek, Inc.

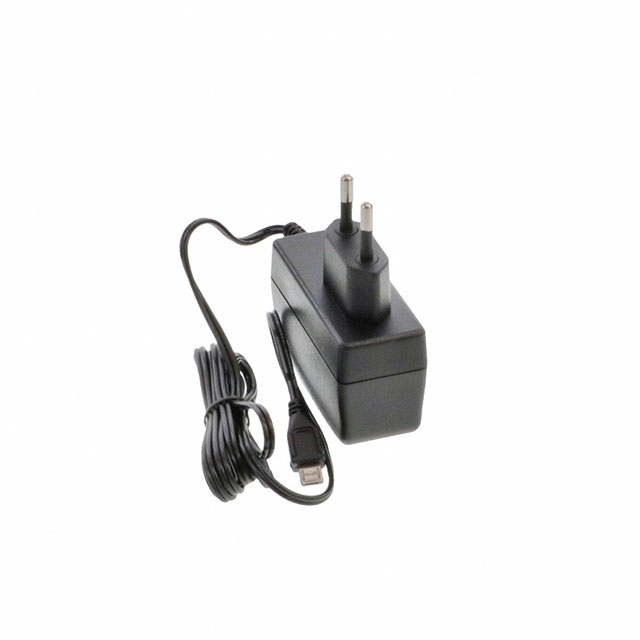

AC/DC WALL MOUNT ADAPTER 5V 10W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WR9MA2000MICB-MFR6B

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 5V 10W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WR9MA2000MICB-MFR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	EAC, S-Mark, CB, CE, VCCI, UKRSepro
Cord Length	60.2 in
Cord Length	1.53 m
Current - Output (Max) [Max]	2 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	CEE 7/16
Input Type	Fixed Blade
Output Connector	USB Micro
Power (Watts)	10 W
Region Utilized	Europe
Size / Dimension [x]	69 mm
Size / Dimension [x]	2.72 "
Size / Dimension [y]	1.13 in
Size / Dimension [y]	28.8 mm
Size / Dimension [z]	2.3 "
Size / Dimension [z]	58.3 mm
Standard Number	60335-1, 60601-1-11, 60601-1-2, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V

WR9MA2000 Series

Part	Input Type	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Region Utilized	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Standard Number	Input Connector	Voltage - Output	Power (Watts)	Output Connector	Applications	Form	Cord Length	Cord Length	Output Connector [diameter]	Output Connector [x]	Polarization	No Load Power Consumption [Max]	Output Connector [z]
GlobTek, Inc. WR9MA2000MICB-MFR6B	Fixed Blade	CB CE EAC S-Mark UKRSepro VCCI	90 VAC	264 VAC	Level VI	Europe	2 A	2.3 "	69 mm	1.13 in	2.72 "	58.3 mm	28.8 mm	60335-1 60601-1-11 60601-1-2 62368-1	CEE 7/16	5 V	10 W	USB Micro	Household Appliances ITE (Commercial) Medical	Wall Mount (Class II)	60.2 in	1.53 m
GlobTek, Inc. WR9MA2000LCP-F(R6B)	Fixed Blade	CB CE EAC LPS UKRSepro	90 VAC	264 VAC	Level VI	Europe	2 A	2.3 "	69 mm	1.13 in	2.72 "	58.3 mm	28.8 mm	60950-1	CEE 7/16	5 V	10 W	Barrel Plug	ITE (Commercial)	Wall Mount (Class II)	60.2 in	1.53 m	2.5 mm 5.5 mm	11 mm	Positive Center	75 mW
GlobTek, Inc. WR9MA2000CCPMFR6B	Fixed Blade	CB CE EAC S-Mark UKRSepro VCCI	90 VAC	264 VAC	Level VI	Europe	2 A	2.3 "	69 mm	1.13 in	2.72 "	58.3 mm	28.8 mm	60335-1 60601-1-11 60601-1-2 62368-1	CEE 7/16	5 V	10 W	Barrel Plug	Household Appliances ITE (Commercial) Medical	Wall Mount (Class II)	59 in	1.5 m	2.1 mm 5.5 mm		Positive Center		11 mm
GlobTek, Inc. WR9MA2000USB-F(R6B)	Fixed Blade	CB CE EAC SIQ UKRSepro	90 VAC	264 VAC	Level VI	Europe	2 A	1.52 in	51.5 mm	0.93 in	2.03 in	38.5 mm	23.5 mm	60950-1	CEE 7/16	5 V	10 W		ITE (Commercial)	Wall Mount (Class II)
GlobTek, Inc. WR9MA2000UUSB-F(R6B)	Fixed Blade	CB CE EAC LPS UKRSepro	90 VAC	264 VAC	Level VI	Europe	2 A	2.3 "	69 mm	1.13 in	2.72 "	58.3 mm	28.8 mm	60950-1	CEE 7/16	5 V	10 W	USB Micro	ITE (Commercial)	Wall Mount (Class II)	60.2 in	1.53 m				75 mW
GlobTek, Inc. WR9MA2000LCP-F(R6W)	Fixed Blade	CB CE EAC LPS UKRSepro	90 VAC	264 VAC	CoC Tier 2 Level VI	Europe	2 A	3.06 "	69 mm	1.13 in	2.72 "	77.7 mm	28.8 mm		CEE 7/16	5 V	10 W	Barrel Plug	ITE (Commercial)	Wall Mount (Class II)	60.2 in	1.5 m	2.5 mm 5.5 mm	11 mm	Positive Center	75 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.54
		5	$ 12.20
		10	$ 11.52
		25	$ 10.84
		50	$ 10.17
		120	$ 9.49
		360	$ 9.15
		600	$ 9.01

Description

General part information

WR9MA2000 Series

5V 10 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
