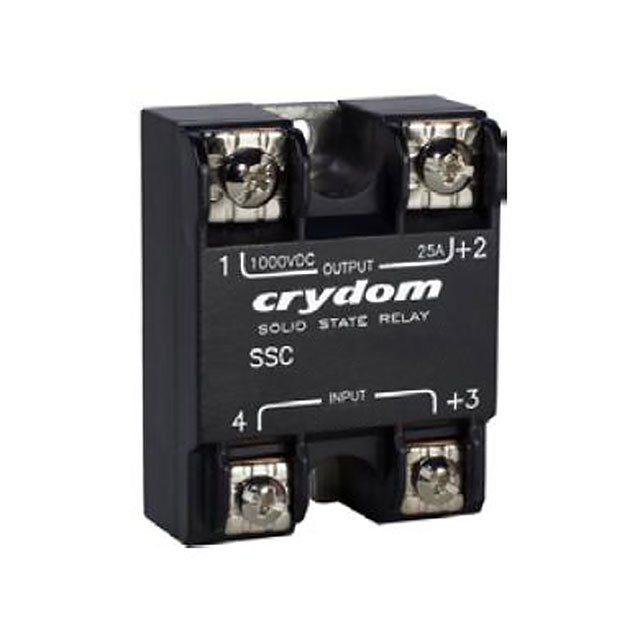

SSC1000-25-12
ActiveSensata-Crydom
RELAY SSR HV DC 1KVDC 25A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsCE Declaration of Conformity
SSC1000-25-12
ActiveSensata-Crydom
RELAY SSR HV DC 1KVDC 25A 12V
Deep-Dive with AI
DocumentsCE Declaration of Conformity
Technical Specifications
Parameters and characteristics for this part
| Specification | SSC1000-25-12 |
|---|---|
| Load Current | 25 A |
| Mounting Type | Chassis Mount |
| Output Type | DC |
| Package / Case | Hockey Puck |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 16 V |
| Voltage - Input [Min] | 8 V |
| Voltage - Load [Max] | 1000 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 269.98 | |
| 10 | $ 257.13 | |||
Description
General part information
SSC1000 Series
RELAY SSR HV DC 1KVDC 25A 12V
Documents
Technical documentation and resources
