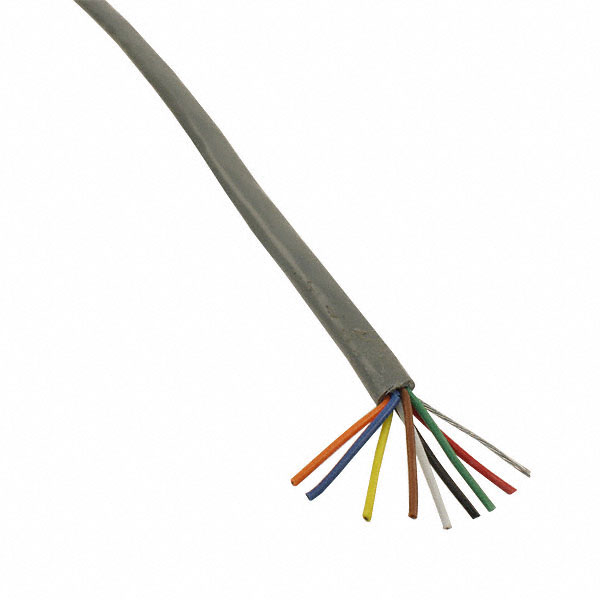

C0744A.41.10
ActivePrysmian Group
CABLE 8COND 24AWG GRAY SHLD
Deep-Dive with AI
Search across all available documentation for this part.
C0744A.41.10
ActivePrysmian Group
CABLE 8COND 24AWG GRAY SHLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C0744A.41.10 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 32 AWG |
| Conductor Strand [custom] | 7 |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 5.46 mm |
| Jacket (Insulation) Diameter [diameter] | 0.215 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray |
| Length | 1000 ft |
| Length | 304.8 m, 15.24 m |
| Length [x] | 50 ft |
| Number of Conductors | 8 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Shield Coverage | 100 % |
| Shield Material | Flexfoil® |
| Shield Type | Foil |
| Usage | Computer |
| Voltage | 300 V |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 74.38 | |
| 5 | $ 60.86 | |||
| 10 | $ 47.34 | |||
| Spool | 1000 | $ 0.68 | ||
| 2000 | $ 0.65 | |||
| 3000 | $ 0.63 | |||
| 5000 | $ 0.60 | |||
| 7000 | $ 0.59 | |||
| 10000 | $ 0.57 | |||
Description
General part information
C0744 Series
8 Conductor Multi-Conductor Cable Gray 24 AWG Foil 1000.0' (304.8m)
Documents
Technical documentation and resources
No documents available
